Electric Power Generation: 2G Energy Ag


Pure Energy Solutions for Sub-Saharan Africa



Biogas Products

Inspired by the Future

2G Energy AG is currently one of the leading international manufacturers of combined heat and power (CHP) systems for the decentralized production of energy in the output range from 20 to 4,500 kW. As a technological leader with 14 subsidiaries and over 900 employees worldwide, we provide holistic energy supply solutions suited to almost any field of application imaginable, including the agricultural sector, municipalities, the housing industry, commercial enterprises, medium-scale and major industrial enterprises, the energy sector and many more.

g-box

Small Profitable and Efficient​

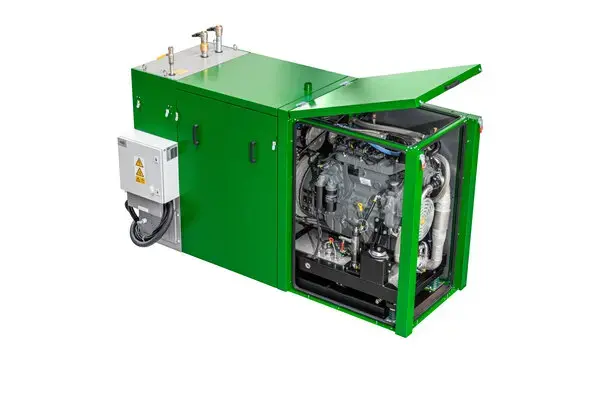

The g-box is 2G’s profitable small power plant with an electrical output of up to 50 kW. The connection-ready module includes a control cabinet with a PLC controller. While the powerful unit works extremely efficiently, the low noise output makes it suitable for various applications like hotels, offices, or residential buildings.


- Connection-ready for easy integration

- Compact design requires minimal space for installation

- Super-silent and fully enclosed compact module (max 55 dB(A) at a distance of 3 ft)

- Very economical – highest thermal efficiencies through condensing technology

- Completely water-cooled – no need for costly installation of air ducts

- High availability, reliability, and low-maintenance

- Island mode/black start capable

g-box Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • g-box 50 50

Thermal Output

  • Type MBTU
  • g-box 50 283

Electrical Efficiency

  • Type %
  • g-box 50 31.3

Thermal Efficiency

  • Type %
  • g-box 50 52.4

Total Efficiency

  • Type %
  • g-box 50 83.7

agenitor

Evolution in Efficiency

The agenitor by 2G results from intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.


- Highly efficient power plant with an optimized gas engine – and therefore lower fuel costs

- Modular design facilitates installation in hard-to-reach places

- Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components

- Resilient and low-maintenance

- Available as a twin pack configuration with two modules per container for twice the power


agenitor Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • agenitor 404a 80
  • agenitor 404b 100
  • agenitor 404c 160
  • agenitor 406 250
  • agenitor 408 360
  • agenitor 412 450

Thermal Output

  • Type MBTU
  • agenito​r 404a 341
  • agenito​r 404b 406
  • agenito​r 404c 580
  • agenito​r 406 887
  • agenito​r 408 1306
  • agenito​r 412 1555

Electrical Efficiency

  • Type %
  • agenito​r 404a 35.2
  • agenito​r 404b 37.0
  • agenito​r 404c 39.7
  • agenito​r 406 41.3
  • agenito​r 408 40.9
  • agenito​r 412 40.2

Thermal Efficiency

  • Type %
  • agenito​r 404a 44.1
  • agenito​r 404b 44.0
  • agenito​r 404c 42.0
  • agenito​r 406 42.9
  • agenito​r 408 43.6
  • agenito​r 412 40.8

Total Efficiency

  • Type %
  • agenito​r 404a 79.3
  • agenito​r 404b 81.0
  • agenito​r 404c 81.7
  • agenito​r 406 84.2
  • agenito​r 408 84.4
  • agenito​r 412 81.0

avus

Built for Big Tasks

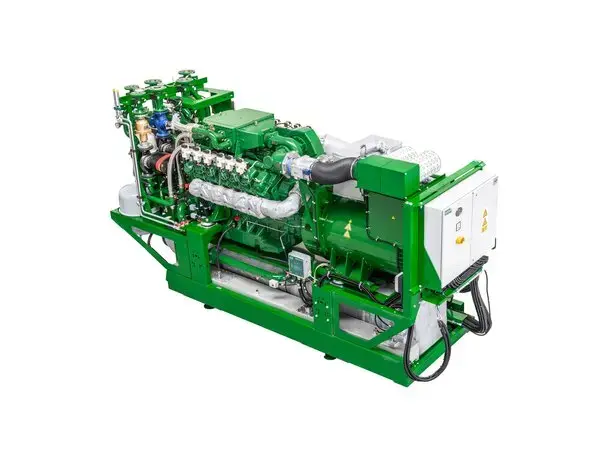

The avus is a highly efficient 2G power plant for high electric power consumption (above 500 kW), which is used in larger industrial projects or for supplying microgrids. The modular built systems include all components and are easy to install.


- Interconnection of multiple units allows for higher electrical output. A Master Control system enables synchronization and load sharing to up to 5 modules.

- Efficient running mode and operating times due to excellent engine quality



avus Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • avus 500 plus 550
  • avus 600c 600
  • avus 800c 800
  • avus 1200c 1200
  • avus 1200d 1145
  • avus 1500c 1560
  • avus 2000c 2000

Thermal Output

  • Type MBTU
  • avus 500 plus 2002
  • avus 600c 2190
  • avus 800c 2859
  • avus 1200c 3900
  • avus 1200d 3979
  • avus 1500c 5374
  • avus 2000c 6817

Electrical Efficiency

  • Type %
  • avus 500 plus 40.6
  • avus 600c 40.4
  • avus 800c 40.7
  • avus 1200c 42.8
  • avus 1200d 41.5
  • avus 1500c 41.7
  • avus 2000c 42.3

Thermal Efficiency

  • Type %
  • avus 500 plus 43.3
  • avus 600c 43.1
  • avus 800c 42.7
  • avus 1200c 40.7
  • avus 1200d 42.3
  • avus 1500c 42.1
  • avus 2000c 42.2

Total Efficiency

  • Type %
  • avus 500 plus 83.9
  • avus 600c 83.5
  • avus 800c 83.4
  • avus 1200c 83.5
  • avus 1200d 83.8
  • avus 1500c 83.8
  • avus 2000c 84.5
