2G Energy AG is currently one of the leading international manufacturers of combined heat and power (CHP) systems for the decentralized production of energy in the output range from 20 to 4,500 kW. As a technological leader with 14 subsidiaries and over 900 employees worldwide, we provide holistic energy supply solutions suited to almost any field of application imaginable, including the agricultural sector, municipalities, the housing industry, commercial enterprises, medium-scale and major industrial enterprises, the energy sector and many more.

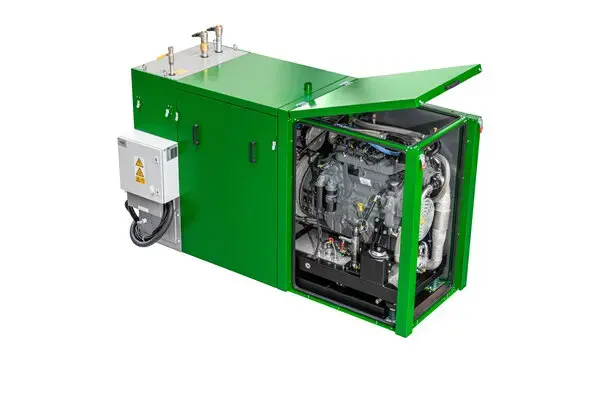

g-box

Small Profitable and Efficient​

The g-box is 2G’s profitable small power plant with an electrical output of up to 60 kW. The connection-ready module includes a control cabinet with a PLC controller. While the powerful unit works extremely efficiently, the low noise output makes it suitable for various applications like hotels, offices, or residential buildings.


- Connection-ready for easy integration

- Compact design requires minimal space for installation

- Super-silent and fully enclosed compact module (max 55 dB(A) at a distance of 3 ft)

- Very economical – highest thermal efficiencies through condensing technology

- Completely water-cooled – no need for costly installation of air ducts

- High availability, reliability, and low-maintenance

- Island mode/black start capable

g-box Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • g-box 50 60

Thermal Output

  • Type MBTU
  • g-box 50 423

Electrical Efficiency

  • Type %
  • g-box 50 34.3

Thermal Efficiency

  • Type %
  • g-box 50 71.0

Total Efficiency

  • Type %
  • g-box 50 105.3

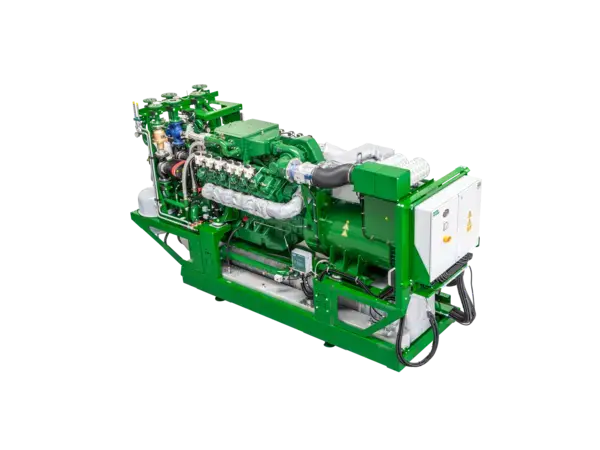

aura​

Clean & Efficient

Equipped with 2G‘s proprietary Lambda 1 technology and low-charged turbocharger, it is also characterized by extremely low exhaust emissions and meets, in particular, the increasingly stringent requirements for low nitrogen oxide limits.


- Low emissions

- High heat efficiency

- Reliable, service-friendly motor

- Specifically higher performance than 15 % of conventional systems with the same displacement

- Designed as a ready-to-connect compact module



aura Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • aura 404 100
  • aura 406 170
  • aura 408 280
  • aura 412 420

Thermal Output

  • Type MBTU
  • aura 404 525
  • aura 406 808
  • aura 408 1493
  • aura 412 2235

Electrical Efficiency

  • Type %
  • aura 404 35.9
  • aura 406 35.4
  • aura 408 37.1
  • aura 412 37.2

Thermal Efficiency

  • Type %
  • aura 404 54.9
  • aura 406 55.8
  • aura 408 58.0
  • aura 412 58.0

Total Efficiency

  • Type %
  • aura 404 90.8
  • aura 406 91.2
  • aura 408 95.1
  • aura 412 95.2

agenitor

Evolution in Efficiency

The agenitor by 2G results from intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.


- Highly efficient power plant with an optimized gas engine – and therefore lower fuel costs

- Modular design facilitates installation in hard-to-reach places

- Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components

- Resilient and low-maintenance

- Available as a twin pack configuration with two modules per container for twice the power


agenitor Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • agenitor 404b 100
  • agenitor 404c 160
  • agenitor 406 250
  • agenitor 408 360
  • agenitor 412 450

Thermal Output

  • Type MBTU
  • agenito​r 404b 416
  • agenito​r 404c 610
  • agenito​r 406 938
  • agenito​r 408 1361
  • agenito​r 412 1634

Electrical Efficiency

  • Type %
  • agenito​r 404b 36.9
  • agenito​r 404c 39.7
  • agenito​r 406 40.6
  • agenito​r 408 40.9
  • agenito​r 412 40.2

Thermal Efficiency

  • Type %
  • agenito​r 404b 45.0
  • agenito​r 404c 44.3
  • agenito​r 406 44.7
  • agenito​r 408 45.3
  • agenito​r 412 42.8

Total Efficiency

  • Type %
  • agenito​r 404b 81.9
  • agenito​r 404c 84.0
  • agenito​r 406 85.3
  • agenito​r 408 86.2
  • agenito​r 412 83.0

avus

Built for Big Tasks

The avus is a highly efficient 2G power plant for high electric power consumption (above 500 kW), which is used in larger industrial projects or for supplying microgrids. The modular built systems include all components and are easy to install.


- Interconnection of multiple units allows for higher electrical output. A Master Control system enables synchronization and load sharing to up to 5 modules.

- Efficient running mode and operating times due to excellent engine quality



avus Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • avus 500 plus 550
  • avus 600c 600
  • avus 800c 800
  • avus 1000 plus 1000
  • avus 1200c 1200
  • avus 1200e 1509
  • avus 1500c 1560
  • avus 1600e 2014
  • avus 2000c 2000
  • avus 2000e 2521

Thermal Output

  • Type MBTU
  • avus 500 plus 2084
  • avus 600c 2320
  • avus 800c 3043
  • avus 1000 plus 3608
  • avus 1200c 4080
  • avus 1200e 5537
  • avus 1500c 5421
  • avus 1600e 7407
  • avus 2000c 6793
  • avus 2000e 9283

Electrical Efficiency

  • Type %
  • avus 500 plus 40.6
  • avus 600c 42.2
  • avus 800c 42.4
  • avus 1000 plus 42.3
  • avus 1200c 43.4
  • avus 1200e 43.7
  • avus 1500c 43.0
  • avus 1600e 43.3
  • avus 2000c 43.4
  • avus 2000e 43.6

Thermal Efficiency

  • Type %
  • avus 500 plus 45.1
  • avus 600c 45.9
  • avus 800c 45.7
  • avus 1000 plus 44.7
  • avus 1200c 43.2
  • avus 1200e 46.1
  • avus 1500c 43.8
  • avus 1600e 46.7
  • avus 2000c 43.2
  • avus 2000e 46.7

Total Efficiency

  • Type %
  • avus 500 plus 85.7
  • avus 600c 88.1
  • avus 800c 88.1
  • avus 1000 plus 87.0
  • avus 1200c 86.6
  • avus 1200e 89.8
  • avus 1500c 86.8
  • avus 1600e 90.0
  • avus 2000c 86.6
  • avus 2000e 90.3
