Electric Power Generation: 2G Energy Ag


Pure Energy Solutions for Sub-Saharan Africa



Propane Products

Inspired by the Future

2G Energy AG is currently one of the leading international manufacturers of combined heat and power (CHP) systems for the decentralized production of energy in the output range from 20 to 4,500 kW. As a technological leader with 14 subsidiaries and over 900 employees worldwide, we provide holistic energy supply solutions suited to almost any field of application imaginable, including the agricultural sector, municipalities, the housing industry, commercial enterprises, medium-scale and major industrial enterprises, the energy sector and many more.

g-box

Small Profitable and Efficient​

The g-box is 2G’s profitable small power plant with an electrical output of up to 60 kW. The connection-ready module includes a control cabinet with a PLC controller. While the powerful unit works extremely efficiently, the low noise output makes it suitable for various applications like hotels, offices, or residential buildings.


- Connection-ready for easy integration

- Compact design requires minimal space for installation

- Super-silent and fully enclosed compact module (max 55 dB(A) at a distance of 3 ft)

- Very economical – highest thermal efficiencies through condensing technology

- Completely water-cooled – no need for costly installation of air ducts

- High availability, reliability, and low-maintenance

- Island mode/black start capable

g-box Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • g-box 50 60

Thermal Output

  • Type MBTU
  • g-box 50 423

Electrical Efficiency

  • Type %
  • g-box 50 34.3

Thermal Efficiency

  • Type %
  • g-box 50 71.0

Total Efficiency

  • Type %
  • g-box 50 105.3

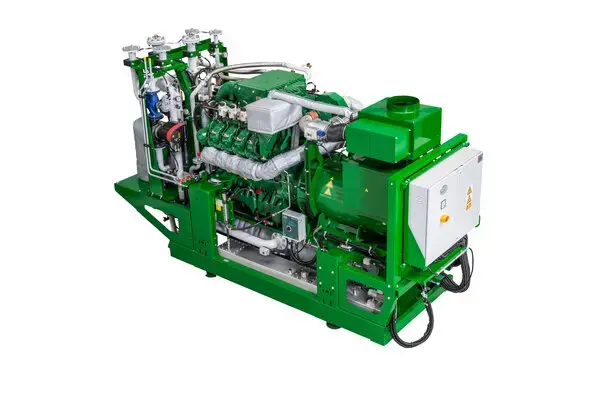

agenitor

Evolution in Efficiency

The agenitor by 2G results from intensive work by the 2G research and development team. Improving combustion chamber geometry has made it possible to increase the efficiency of the agenitor significantly.


- Highly efficient power plant with an optimized gas engine – and therefore lower fuel costs

- Modular design facilitates installation in hard-to-reach places

- Very reliable even in regular start-stop operation thanks to highly wear-resistant engine components

- Resilient and low-maintenance

- Available as a twin pack configuration with two modules per container for twice the power


agenitor Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • agenitor 404 100
  • agenitor 406 150
  • agenitor 408 215
  • agenitor 412 330
  • agenitor 420 580

Thermal Output

  • Type MBTU
  • agenito​r 404 419
  • agenito​r 406 631
  • agenito​r 408 887
  • agenito​r 412 1426
  • agenito​r 420 2327

Electrical Efficiency

  • Type %
  • agenito​r 404 36.3
  • agenito​r 406 37.2
  • agenito​r 408 37.5
  • agenito​r 412 37.7
  • agenito​r 420 38.3

Thermal Efficiency

  • Type %
  • agenito​r 404 44.5
  • agenito​r 406 45.9
  • agenito​r 408 45.3
  • agenito​r 412 44.5
  • agenito​r 420 45.1

Total Efficiency

  • Type %
  • agenito​r 404 80.9
  • agenito​r 406 83.1
  • agenito​r 408 82.7
  • agenito​r 412 82.2
  • agenito​r 420 83.4

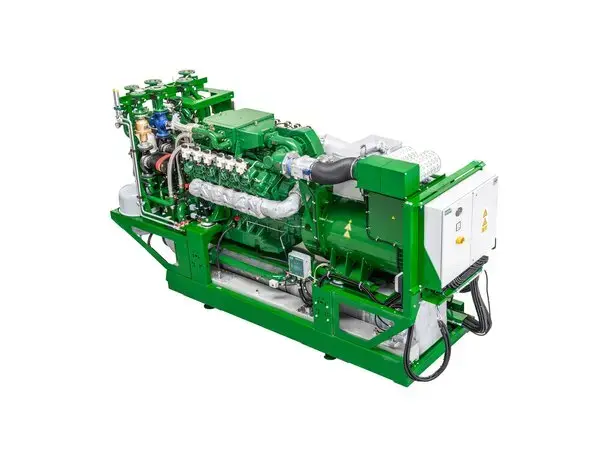

avus

Built for Big Tasks

The avus is a highly efficient 2G power plant for high electric power consumption (above 500 kW), which is used in larger industrial projects or for supplying microgrids. The modular built systems include all components and are easy to install.


- Interconnection of multiple units allows for higher electrical output. A Master Control system enables synchronization and load sharing to up to 5 modules.

- Efficient running mode and operating times due to excellent engine quality



avus Product Range

Refer to the table below for Output Ratings

Electrical Output

  • Type kWH
  • avus 1000a 848
  • avus 1000b 997
  • avus 1000c 855
  • avus 1500b 1248
  • avus 1500c 822
  • avus 2000c 945

Thermal Output

  • Type MBTU
  • avus 1000a 3876
  • avus 1000b 4080
  • avus 1000c 2555
  • avus 1500b 4998
  • avus 1500c 3306
  • avus 2000c 3852

Electrical Efficiency

  • Type %
  • avus 1000a 38.0
  • avus 1000b 40.9
  • avus 1000c 40.3
  • avus 1500b 40.9
  • avus 1500c 39.8
  • avus 2000c 39.2

Thermal Efficiency

  • Type %
  • avus 1000a 50.89
  • avus 1000b 49.00
  • avus 1000c 46.40
  • avus 1500b 48.00
  • avus 1500c 46.90
  • avus 2000c 46.80

Total Efficiency

  • Type %
  • avus 1000a 88.89
  • avus 1000b 89.90
  • avus 1000c 86.70
  • avus 1500b 89.00
  • avus 1500c 86.70
  • avus 2000c 86.00
