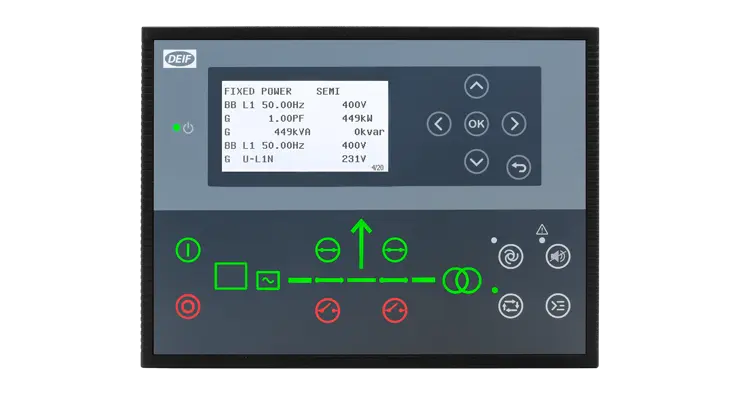

AGC 150

A Simplified Solution For Genset Builders.

The AGC 150 Genset controller containing all necessary functions for control and protection of a genset. Thanks to its slim design, the genset controller is suitable for paralleling even small gensets, enabling the AGC 150 to be integrated into almost any genset configuration.


Easy setup

Gensets connected via CAN bus are easily set up for parallel operation as the controllers automatically detect each other at the CAN network. If you at a later stage connect more gensets, the controller automatically identifies and connects them via CAN bus, and application configuration is possible via the display.


​RETURN TO CONTROLS MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO DEIF HOME PAGE

Get access to important genset information quickly via the sunlight readable LCD.


The controller features illuminated buttons that smoothly guide the operator and make it very easy and intuitive to operate. Only buttons relevant for a function are visible to the user. Get easy access to the most common functions with configurable shortcuts.


The AGC 150 provides up to three levels (customer, service, and master) of password-protected and role-based access. Configure parameters for each level and have only relevant parameters displayed.

The AGC 150 comes with uncompromising quality. The controller is made of robust materials and is built to last. It has undergone several tests showing that it stands wear and tear in all types of harsh environments. Also, the controller is suitable for PV-Diesel hybrid solutions and also meets Tier 4 Final requirements

Product Overview

Refer to the table below

Key Features

  • Modes for operation: Automatic

  •      Manual

  •      Remote Stop & Start

  •      Test
  • Applications: Power Management Applications

  •      Automatic Mains Failure (AMF)
  • Inputs: 4 V/I/R

  •      12 Digital Inputs
  • Outputs: 12 Digital Output

  •      2 Analog Output
  • Communication: Modbus over RS-485

  •      Modbus TCP/IP

  •      CANbus for engine communication / PMS

  •      Support for Stage 5 / Tier 4 Final

Key Features Continued..........

  • Measurements: 1-Φ/3-Φ Voltage

  •      Frequency

  •      3-Φ Current
  • Monitoring: Engine oil pressure (AI/CAN)

  •      Engine temperature (AI/CAN)

  •      Fuel level and ECU Values
  • Functionality: Hybrid Integration via ASC

  •      External I/O via CIO

  •      CANbus Control to Leroy Somer / DEIF Digital AVR's
  • Programming: From Display

  •      With Utility Software (USW3)
  • Remote Monitoring:

Product Range

Overview

AGC 150 Options

  • Mains Controller
  • BTB Controller
  • Stand Alone Controller
  • Engine Drive Controller
  • Remote Display
  • PMS Lite Controller
