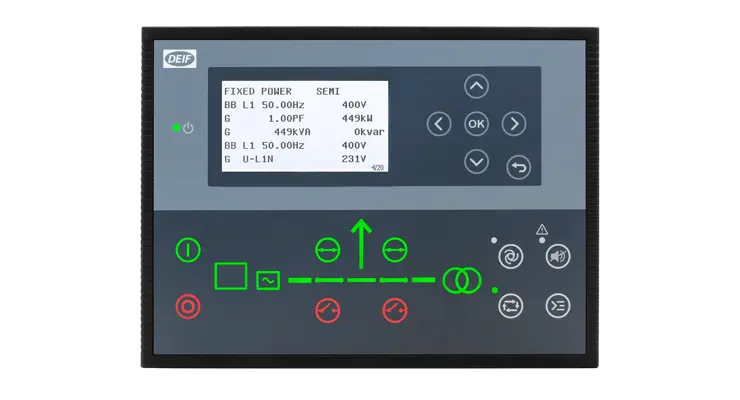

AGC 150 Hybrid

A Simplified Solution For Genset Builders.

The AGC 150 Hybrid is designed for protection and control of a hybrid installation with PV energy and genset.


The AGC 150 Hybrid comes with all the necessary functions for protection and control of a hybrid installation with PV and genset. The controller is ideal for small and medium PV plants with up to 16 inverters, e.g. rooftop PV plants.


When mounted on the genset, the AGC 150 Hybrid controls the PV power and functions as a dedicated hybrid controller. The AGC 150 can also be applied as a stand-alone controller, interlinking the PV inverters and genset controller.​


​RETURN TO CONTROLS MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO DEIF HOME PAGE

The AGC 150 Hybrid controls up to 2 gensets for synchronising or non-synchronising projects, in island or parallel to the mains modes. The AGC 150 Hybrid handles the power production from the PV inverters and genset to give the highest PV penetration and the lowest CO2 emission.


To ensure a sufficient minimum genset load, the AGC 150 Hybrid supports the load with PV power in a safe an and reliable way.


Get access to important genset information quickly via the sunlight readable LCD.


The controller features illuminated buttons that smoothly guide the operator and make it very easy and intuitive to operate. Only buttons relevant for a function are visible to the user. Get easy access to the most common functions with configurable shortcuts.


The AGC 150 provides up to three levels (customer, service, and master) of password-protected and role-based access. Configure parameters for each level and have only relevant settings displayed.

The AGC 150 comes with uncompromising quality. The controller is made of robust materials and is built to last. It has undergone several tests showing that it stands wear and tear in all types of harsh environments.

Product Overview

Refer to the table below

Key Features

  • Modes for operation: Automatic

  •      Manual

  •      Remote Stop & Start

  •      Test
  • Applications: Hybrid Integration (DG-PV)

  •      Automatic Mains Failure (AMF)
  • Inputs: 4 V/I/R

  •      12 Digital Inputs
  • Outputs: 10 Digital Output

  •      2 Analog Output
  • Communication: Modbus over RS-485

  •      Modbus TCP/IP

  •      CANbus for engine communication / PMS

  •      Support for Stage 5 / Tier 4 Final

Key Features Continued..........

  • Measurements: 1-Φ/3-Φ Voltage

  •      Frequency

  •      3-Φ Current
  • Monitoring: Engine oil pressure (AI/CAN)

  •      Engine temperature (AI/CAN)

  •      Fuel level and ECU Values
  • Functionality: External I/O via CIO

  •      CANbus Control to Leroy Somer / DEIF Digital AVR's
  • Programming: From Display

  •      With Utility Software (USW3)
  • Remote Monitoring:

Product Range

Overview

AGC 150 Options

  • Stand Alone Controller
  • Core Controller

Experience ultimate control. iE250

Would you and your team like to receive training on this product?


We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course



eLearning

Technical Troubleshooting

Spare Parts & Technical Support

Please click on the link below for spare parts service and maintenance

  Purchase Parts Online

DOWNLOAD:

Brochures

Technical Data Sheet

Options

Drawings

Maintenance and Parts Manual
