PPM-300

A Simplified Solution For Genset Builders.

Designed for applications in the marine and offshore industry, DEIF’s innovative PPM 300 solution is a versatile, intelligent generator control platform.


Incorporating an extensive range of control, protection and supervision functions, PPM 300 applications range from generator control and protection to engineered power management solutions developed for diesel generators (including emergency diesel generators), shaft generators, battery energy storage, shore connections, and bus tie breakers.


PPM 300 power management systems meet and maintain set power requirements and guarantee stable operation. PPM 300 power management systems also incorporate market-leading fuel optimisation technology as well as ABP, Advanced Blackout Prevention, designed specially for Dynamic Positioning (DP) plants.

​RETURN TO CONTROLS MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO DEIF HOME PAGE

Being part of a multi-master solution, the integrated PPM 300 controllers connect and communicate as a closed circuit to eradicate single point failures: in cases of unit fall-out, the master functionality automatically moves to another host keeping the system not just operational but safe and reliable at all times.


Built as a sturdy piece of market-leading quality hardware, the PPM 300 features the latest processor technology and long-life adaptability.


Uniquely, the PPM 300’s modular build supports on-site replacement of processor, communication, measurement and input-output modules with comprehensive class approvals. Changes to the unit at sea or in the field are assisted with automatic recognition functionality facilitating fast, easy and cost-saving service, repairs, and upgrades.

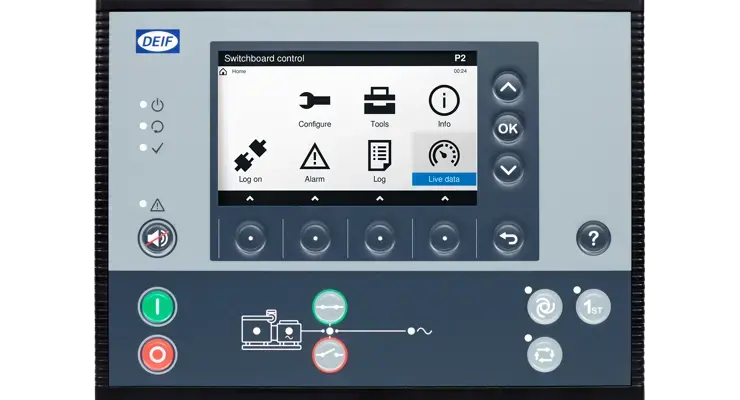

The controller display unit includes a 5” color graphic screen with intuitive sequences and icons for fast readout of live data, and easy access to alarms handling and controller setup. Functionality is defined and targeted according to user permission levels.


PPM-300 Generator set controller - 2911500040.01 or .09

PPM 300 Emergency genset controller - 2911500040.02 or .10

PPM 300 Shaft generator controller - 2911500040.03 or .11

PPM 300 Shore connection controller - 2911500040.04 or .12

PPM 300 Bus tie breaker controller - 2911500040.05 or .13

PPM 300 Hybrid (battery) controller - 2911500040.15

Product Overview

Refer to the table below

Key Features

  • Power Management Functions: Reliable Power

  •      Efficient Operation

  •      Load Control

  •      Generator Priority

  •      Heavy Consumer Management

  •      Busbar Section Management

  •      Loadsharing
  • Applications: Marine Base Applications

  •      Power Management

  •      Switchboard, Manual or Auto Control
  • Inputs: Configurable According to Cards Selected

  •      Bipolar Input
  • Outputs: Configurable According to Cards Selected

  •      Relay (Electromechanical)
  • Analogue Inputs: 4-20mA

  •      PT100

  •      PT1000

  •      RMI

  •      Digital Input

Key Features Continued..........

  • Analogue Outputs: +/- 25mA

  •      0-20mA

  •      4-20mA

  •      -10 to 10Vdc

  •      PWM
  • Communication: Modbus TCP

  •      CANbus
  • Monitoring: Analogue Sensors

  •      ECU Based Information
  • Measurements: 3 Phase Currrent + 4th CT

  •      3 Phase Voltage

  •      Protection per IEEE Std. C37.2-1996 (R2001)
  • Programming: From DEIF's PICUS

  •      Basic Logic (CustomLogic)

Protection & Power Management 300 Hardware Options

Overview

Genset

  • 2911500040.01
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • EIM3.1
  • GAM3.1
  • IOM3.1
  • PCM3.1

Emergency

  • 2911500040.02
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • EIM3.1
  • GAM3.1
  • PCM3.1

Shaft

  • 2911500040.03
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • 3x Blind
  • PCM3.1

Shore Connection

  • 2911500040.04
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • 3x Blind
  • PCM3.1

Bus Tie Breaker

  • 2911500040.05
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • 3x Blind
  • PCM3.1

Genset

  • 2911500040.09
  • R4.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • PCM3.1

Emergency

  • 2911500040.10
  • R4.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • PCM3.1

Shaft

  • 2911500040.11
  • R4.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • PCM3.1

Shore Connection

  • 2911500040.12
  • R4.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • PCM3.1

Bus Tie Breaker

  • 2911500040.13
  • R4.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • PCM3.1

Hybrid

  • 2911500040.15
  • R7.1
  • PSM3.1
  • ACM3.1
  • IOM3.1
  • EIM3.1
  • GAM3.1
  • IOM3.1
  • PCM3.1
