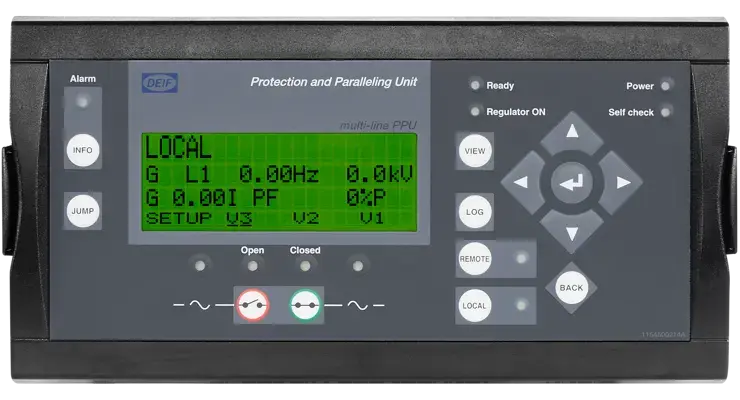

PPU-3

A Simplified Solution For Genset Builders.

Easy to operate and configure, DEIF’s PPU-3 control and protection unit is an ideal controller for PLC-based power management systems.


Apart from generator protection and synchronisation, the PPU-3 also features regulation modes including load sharing, fixed power, fixed frequency, etc. Serial communication enables easy interfacing with PLCs, SCADA-systems and more, and the unit features all necessary three-phase measuring circuits, displaying all values and alarms on a quality LCD screen.


Turning the PPU-3 into an engine control unit featuring start/stop and protection functionalities, the optional engine interface card also has a separate power supply and an independent microprocessor.


In cases of PPU-3 processor breakdowns, the engine interface card will enter into backup mode and ensure uninterrupted engine supervision.


In cases of shutdown alarms, the engine shuts down automatically, making it a reliable solution for control and supervision of marine gensets.


​RETURN TO CONTROLS MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO DEIF HOME PAGE

Additional Operator Panels (AOP) can easily be installed and integrated for further levels of remote control, supervision and status indication. Both displays and panels feature a dimmer function for use on the ship’s bridge.


With a range of additional hardware options available, as well as DEIF’s Multi-Line 2 Utility Software v.3 (USW-3) with programmable logic (M-Logic), you can customise the application to suit your needs exactly: dedicate specific functions or logic conditions to different inputs and outputs and tune all sequences according to your requirements.


Free software download and upgrade at www.deif.com.


Product Overview

Refer to the table below

Key Features

  • Modes for operation: Loadsharing

  • Fixed Frequency

  •      Fixed Power

  •      Frequency Droop
  • Applications: Marine

  •      PLC-controlled Systems

  •      Switchboard Control

  •      Analogue or CANbus Loadshare
  • Inputs: Standard 18

  •      Up to 39 in Total
  • Outputs: Up to 28 in Total

  •      29 Relay
  • Remote Monitoring:

Key Features Continued..........

  • Communication: Modbus RS-485/RS-232

  •      Modbus TCP/IP

  •      Profibus DP

  •      CANbus
  • Monitoring: Analogue Sensors

  •      ECU Based Information
  • Measurements: 3 Phase Currrent

  •      3 Phase Voltage (Generator / Shore and Busbar)

  •      Protection per IEEE Std. C37.2-1996(R2001)
  • Programming: From Display

  •      From DEIF's USW-3

  •      Basic Micro-Logic (M-Logic)
