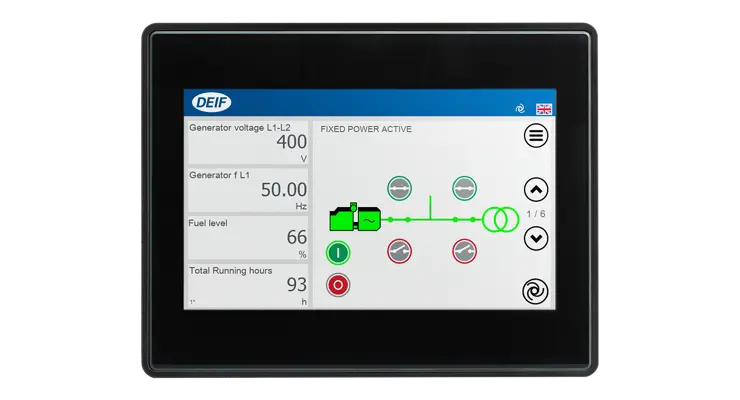

TDU Series
A Simplified Solution For Genset Builders.
The TDU series of touch screen displays takes your projects to new heights by giving you full, yet user-friendly control of individual assets and entire plants or microgrids – and you can get started or reconfigure your solution with plug & play ease.
Manage individual assets …
The TDU automatically shows information, logs, and alarms from the asset it is connected to. It is compatible with AGC-4 Mk II , ASC-4 Battery and Solar , ASC 150 Storage and Solar , and AGC 150 series controllers.
… or the entire plant
With the supervision features of the TDU, you get a single point of control for your entire plant and all assets in it. The ability to manage several asset types from the same TDU makes the unit ideal for visualisation and control of an entire plant or (hybrid) microgrid.
Available in 7, 10, and 15-inch variants, the robust TDU is a perfect fit for many indoor and outdoor control applications. The display has a high-quality glass front and is easily readable.
The TDU gives you off-the-shelf plug & play control. Just connect your assets to get the right setup without spending hours programming, and without worrying about PC tools, drivers, or wiring.
If your requirements change, your TDU changes with them: You can reconfigure a TDU in a matter of minutes, and the unit automatically adapts if you add or remove units from your plant.
Product Overview
Refer to the table below
Key Features
-
Plug and play
-
Build in AOP (additional operators panel) customizable buttons and status lamps
-
Quick instrument selection directly from the screen
-
Tier 4 Final support with automatic jump to dedicated Tier4 page
-
Visual capability curve with actual working point of the genset
-
Easy search functionality in several menus
-
Live application supervision
-
Possibility to merge alarm and event logs
-
Service menu with estimated date for next service
-
Live I/O overview
Product Range
Overview
TDU
-
TDU 107 Core
-
TDU 107 Extended
-
TDU 110 Extended
-
TDU 115 Extended
