Electric Power Generation: Energie
Pure Energy Solutions for Sub-Saharan Africa

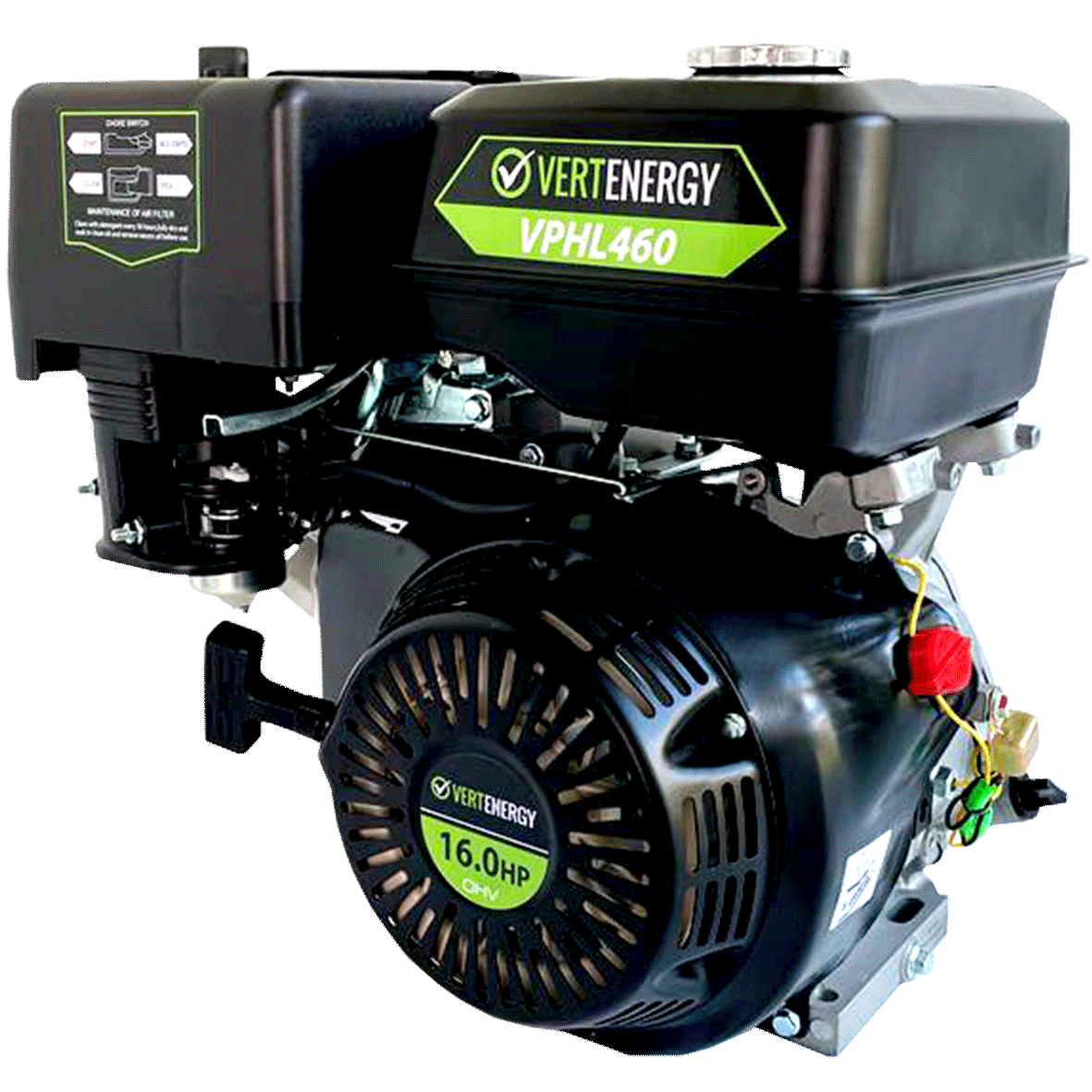

Petrol Engine
Lean Green Power Machines
Energie petrol engines are the perfect size to be portable or used stationary. They are used for gensets, water pumps and small construction equipment and more.
These engines are environmentally friendly as they are quiet and have a low fuel consumption, this reduces the environmental footprint and allows you to save on operating cost.
Product Range Overview
Refer to the table below
Single Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.8kW - 14.5kW
- Cylinder Single
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
V-Twin Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.8kW - 14.5kW
- Cylinder V-Twin
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
Product Range
Overview
Prime Rated
- Single Cylinder kW \ HP
- VPHL210M 4.5 \ 6.0
- VPHL420M 10.4 \ 14.0
- VPHL460E 11.9 \ 16.0
- VPHL460M 11.9 \ 16.0
-
Values are at Max Rated Standby Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
Prime Rated
- V-Twin Cylinder kW \ HP
- VPHL690E 16.4 \ 22.0
- VPHL750E 20.1 \ 27.0
- VPHL1000E 26.0 \ 35.0
-
Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
Mounting Configurations ( Standard )
Taper Shaft
J609B (Generators)
Parallel Keyway Shaft
3/4" & 1" (Industrial)
Threaded Screw Shaft
(Pumps and Rammers)
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
