Aura Series

GOING ONCE. GOING TWICE. GOING GREEN BEFORE ITS GONE

The Aura Range by Halo is our most popular trailer mounted mobile lighting tower for construction, agricultural, municipalities and rental applications.


An addition to the range has been a twin axle mini-miner that merges the most popular features of Corona Mine Specification Units with the easy-to-use features of the Aura range giving you cost-effective energy efficient Light Duty Mine Spec Lighting Tower.


The range offers the flexibility of either a 4 x 350w option or a 4 x 500w solution.


Model: HALT8000-220-S-4x350

             HALT8000-220-S-4x500

​RETURN TO LIGHTING TOWER MAIN PAGE

​RETURN TO HALO HOME PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO HALO SPARE PARTS PAGE

Product Overview

Refer to the table below

Engine Characteristics

  • Engine Three Cylinder Water Cooled Four Stroke
  • Make/Model Yanmar 3TNV76-GGEA
  • Fuel Consumption 2.68 l/ph At Full Load
  • Cooling Water Cooled Naturally Aspirated
  • Output 9kW Continuous
  • Revolution (RPM) 1500 rpm
  • Electric System 12V
  • Starting Method Electric
  • Number of Cylinders 1
  • Displacement L(cu, in) 1.116L
  • Engine Shutdown Protection Low Oil Pressure

  •      High Water Temperature

  •      Low Fuel

Alternator Characteristics

  • Make/Model NSM K132B
  • Output 7kVA
  • Frequency 50Hz 1500rpm
  • Voltage Output 220V AC
  • Coupling SAE 5-7.5
  • Regulation Capacitor
  • Insulation H

  • Controller Characteristics

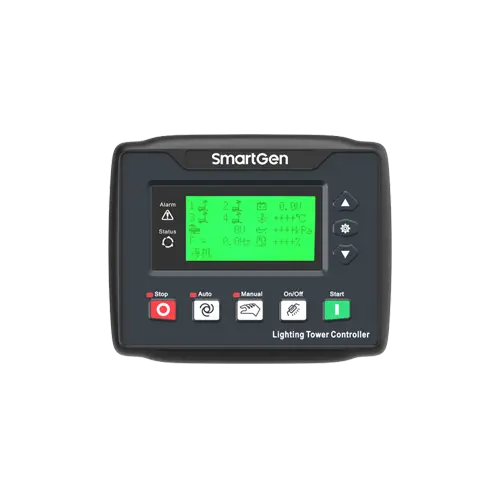

  • Controller Smartgen ALC404
  • Breaker Make and Size ABB or Equivalent 16A
  • IP Protection IP55
  • Battery Charger Smartgen
  • Battery 12V - 16Amp Hour

Fuel & Running Hours

  • Material Metal Self Bunded Tank
  • Capacity
  • Metering & Level Display Yes - Mechanical
  • Total Running Hours

Lighting Characteristics

  • Lighting 4 x 350W LED / 4 x 500W LED
  • Lumens 210 000 / 260 000
  • Type of Lamp Rectangle Type LED Lamp
  • Individual LED Switch On/Off Yes
  • Night Sensor Yes
  • Power Plug In Charger Yes
  • Lamp No. 4 Lamps / Mast
  • Total Lighting Area Sqm (m2) 5000 (20 Luxes)

Mast Tower Characteristics

  • Type Telescopic
  • Total Height 8M
  • Section Type Multi-Sections
  • Wind Speed 80KM/H
  • Rotation 350 Degrees
  • Lights Tiltable Yes Manually
  • Operation Type Manual Operated

Weights & Dimensions

  • Length  mm
  • Width  mm
  • Height  mm
  • Weight (Dry)  kg
  • Weight (Wet)  kg

Products that is Fitted

Yanmar

3TNV76-GGEA

NSM

K132B

SmartGen

ALC404

Plusrite

4 x 350W

Plusrite

4 x 500W
