Corona Series
GOING ONCE. GOING TWICE. GOING GREEN BEFORE ITS GONE
The Corona Range of mine specification mobile lighting towers by Halo, is, as the name suggests the crowning achievement in terms of design and performance.
This rugged design is ideally suited towards the harsh mining environments in Africa. Its mast is hydraulically controlled and is powered by a 3 cylinder water-cooled Yanmar Diesel Engine that maximises performance in a variety of ratings without compromising on stability, luminance and power output.
The Corona Range is the preferred choice of global miners speciliased in expansive pit mining and open cast operations throughout the continent.
Model: HCLT10000-220-T-6x500
HCLT10000-220A-T-6x500
HCLT10000-400A-T-6x500
Product Overview
Refer to the table below
Engine Characteristics
- Engine Three Cylinder Water Cooled Four Stroke
- Make/Model Yanmar 3TNV76-GGEA
- Fuel Consumption 2.68 l/ph At Full Load
- Cooling Water Cooled Naturally Aspirated
- Output 9kW Continuous
- Revolution (RPM) 1500 rpm
- Electric System 12V
- Starting Method Electric
- Number of Cylinders 1
- Displacement L(cu, in) 1.116L
- Engine Shutdown Protection Low Oil Pressure
-
High Water Temperature -
Low Fuel
Alternator Characteristics
- Make/Model NSM K132C / LSAP40E / LSAP40C2
- Output 8kVA / 10kVA / 10kVA
- Voltage Output 220V AC / 220 AC / 400V AC
- Regulation Capacitor / AVR / AVR
- Frequency 50Hz 1500rpm
- Coupling SAE 5-7.5
- Insulation H
-
Controller Characteristics
- Controller Smartgen ALC708
- Breaker Make and Size ABB or Equivalent 16A
- IP Protection IP55
- Battery Charger Smartgen
- Battery 12V - 16Amp Hour
Fuel & Running Hours
- Material Metal Self Bunded Tank
- Capacity 100L
- Metering & Level Display Yes - Mechanical
- Total Running Hours 35
Lighting Characteristics
- Lighting 6 x 500W LED
- Lumens 390 000
- Type of Lamp Rectangle Type LED Lamp
- Individual LED Switch On/Off Yes
- Night Sensor Yes
- Power Plug In Charger Yes
- Lamp No. 6 Lamps / Mast
- Total Lighting Area Sqm (m2) 8000 (20 Luxes)
Mast Tower Characteristics
- Type Telescopic
- Total Height 9M
- Section Type Multi-Sections
- Wind Speed 80KM/H
- Rotation 350 Degrees
- Lights Tiltable Yes Manually
- Operation Type Hydraulically Operated
Weights & Dimensions
- Length 2350 mm
- Width 1600 mm
- Height 2500 mm
- Weight (Dry) 1960 kg
- Weight (Wet) 2150 kg
Products that is Fitted
Yanmar
3TNV76-GGEA

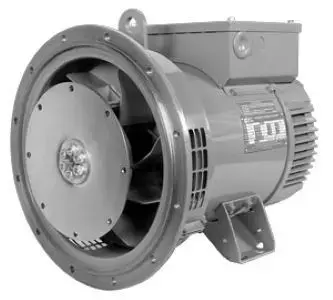

NSM
K132C/D

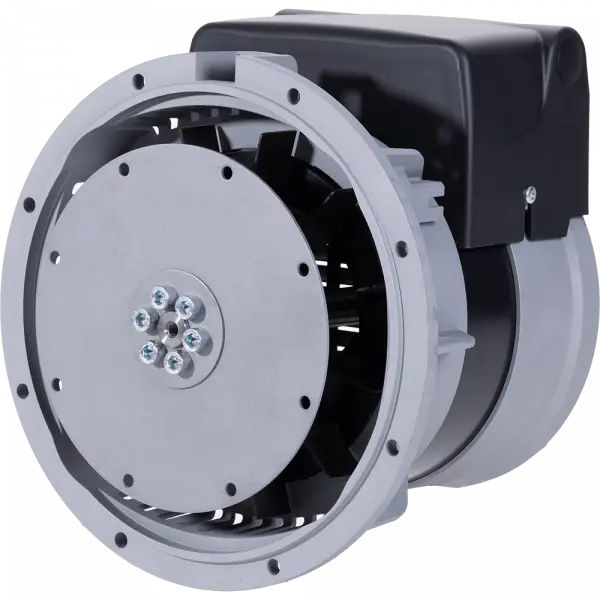

Leroy Somer
LSAP40E/C2

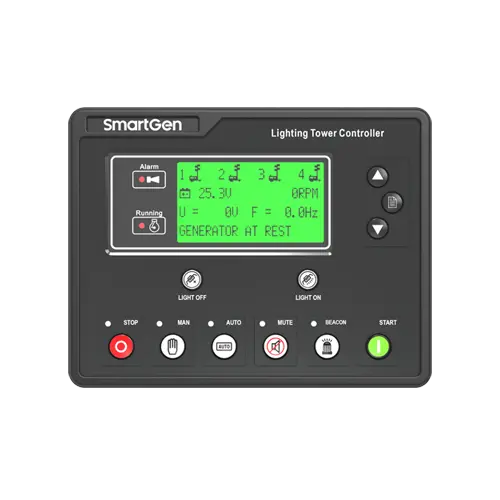

SmartGen
ALC708
Plusrite
6 x 500W
