Industrial Power Products: Halo
Pure Energy Solutions for Sub-Saharan Africa
Nimbus Series
GOING ONCE. GOING TWICE. GOING GREEN BEFORE ITS GONE
The Nimbus Range by Halo is an ideal trailer mounted mobile lighting tower for construction, agricultural and rental applications.
Designed for construction, roadworks and farmers alike. The Nimbus Range features two variants that offer a 4.2kVA option 220v option or 6kva 220v generator / welder that offers a 200amp welding solution when the lighting tower or generator is not in use.
The units feature 4 x 350w full LED illumination that ensure your work area is perfectly illuminated.
Model: HNLT4200-220-S-4x350
HNLT6000-220-S-4x350
Product Overview
Refer to the table below for Model HNLT4200-220-S-4x350
Engine Characteristics
- Engine Single Cylinder Air Cooled Four Stroke
- Make/Model Yanmar L70N -DEGLT
- Fuel Consumption 1.176 l/ph At Full Load
- Cooling Air Cooled Naturally Aspirated
- Output 4kW Continuous
- Revolution (RPM) 3000 rpm
- Electric System 12V
- Starting Method Electric
- Number of Cylinders 1
- Displacement L(cu, in) 0.320L
- Engine Shutdown Protection Low Oil Pressure
-
High Water Temperature -
Low Fuel
Alternator Characteristics
- Make/Model NSM K100E
- Output 4.2kVA
- Frequency 50Hz 3000rpm
- Voltage Output 220V AC
- Coupling J609B
- Regulation Capacitor
- Insulation H
-
Controller Characteristics

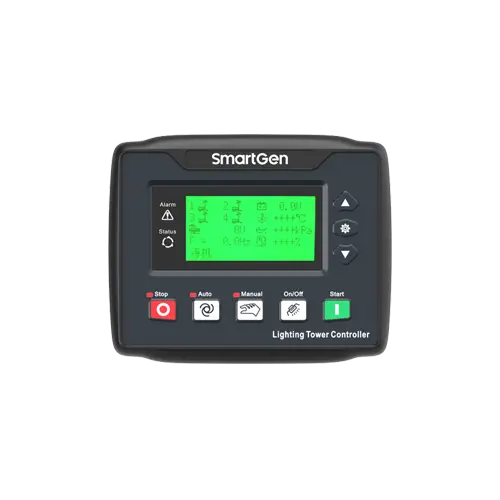

- Controller Smartgen ALC704
- Breaker Make and Size ABB or Equivalent 16A
- IP Protection IP55
- Battery Charger Smartgen
- Battery 12V - 16Amp Hour
Fuel & Running Hours
- Material Metal Self Bunded Tank
- Capacity 100L
- Metering & Level Display Yes - Mechanical
- Total Running Hours 96 Hours
Lighting Characteristics
- Lighting 4 x 350W LED
- Lumens 210 000
- Type of Lamp Rectangle Type LED Lamp
- Individual LED Switch On/Off Yes
- Night Sensor Yes
- Power Plug In Charger Yes
- Lamp No. 4 Lamps / Mast
- Total Lighting Area Sqm (m2) 5000
Mast Tower Characteristics
- Type Telescopic
- Total Height 8M
- Section Type Multi-Sections
- Wind Speed 80KM/H
- Rotation 350 Degrees
- Lights Tiltable Yes Manually
- Operation Type Manual Operated
Weights & Dimensions
- Length 3030 mm
- Width 1500 mm
- Height 3220 mm
- Weight (Dry) 1300 kg
- Weight (Wet) 1450 kg
Products that is Fitted to Model: HNLT4200-220-S-4x350
Yanmar
L70N-DEGLT
NSM
K100E
SmartGen
ALC404
Plusrite
4 x 350W
Product Overview
Refer to the table below for Model HNLT6000-220-S-4x350
Engine Characteristics
- Engine Single Cylinder Air Cooled Four Stroke
- Make/Model Yanmar L100N -DEGLT
- Fuel Consumption 1.176 l/ph At Full Load
- Cooling Air Cooled Naturally Aspirated
- Output 7kW Continuous
- Revolution (RPM) 3000 rpm
- Electric System 12V
- Starting Method Electric
- Number of Cylinders 1
- Displacement L(cu, in) 0.435L
- Engine Shutdown Protection Low Oil Pressure
-
High Water Temperature -
Low Fuel
Alternator Characteristics
- Make/Model NSM WS200AC
- Output 6.0kVA / 200A
- Frequency 50Hz 3000rpm
- Voltage Output 220V AC
- Coupling J609B
- Regulation Capacitor
- Insulation H
-
Controller Characteristics
- Controller Smartgen ALC704
- Breaker Make and Size ABB or Equivalent 16A
- IP Protection IP55
- Battery Charger Smartgen
- Battery 12V - 16Amp Hour
Fuel & Running Hours
- Material Metal Self Bunded Tank
- Capacity 100L
- Metering & Level Display Yes - Mechanical
- Total Running Hours 96 Hours
Lighting Characteristics
- Lighting 4 x 350W LED
- Lumens 210 000
- Type of Lamp Rectangle Type LED Lamp
- Individual LED Switch On/Off Yes
- Night Sensor Yes
- Power Plug In Charger Yes
- Lamp No. 4 Lamps / Mast
- Total Lighting Area Sqm (m2) 5000
Mast Tower Characteristics
- Type Telescopic
- Total Height 8M
- Section Type Multi-Sections
- Wind Speed 80KM/H
- Rotation 350 Degrees
- Lights Tiltable Yes Manually
- Operation Type Manual Operated
Weights & Dimensions
- Length 3030 mm
- Width 1500 mm
- Height 3220 mm
- Weight (Dry) 1300 kg
- Weight (Wet) 1450 kg
Products that is Fitted to Model: HNLT6000-220-S-4x350
Yanmar
L100N-DEGLT
NSM
WS200AC
SmartGen
ALC404
Plusrite
4 x 350W
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
