Industrial Power Products: Halo
Pure Energy Solutions for Sub-Saharan Africa
Silhouette Series
GOING ONCE. GOING TWICE. GOING GREEN BEFORE ITS GONE
The Silhouette by Halo is our entry level skid mounted mobile lighting tower.
This compact yet highly efficient lighting solution is ideally suited for less demanding applications such as events, security, emergency response teams and light duty agricultural environments.
It is powered by an air-cooled Yanmar Diesel Engine giving it a significant weight advantage for ease of mobility and fuel efficiency.
The full LED illumination ensures exceptional performance and cost-effective choice.
Model: HSLT4200-220-N-4x150
Product Overview
Refer to the table below
Engine Characteristics
- Engine Single Cylinder Air Cooled Four Stroke
- Make/Model Yanmar L70N -DEGLT
- Fuel Consumption 1.176 l/ph At Full Load
- Cooling Air Cooled Naturally Aspirated
- Output 4kW Continuous
- Revolution (RPM) 3000 rpm
- Electric System 12V
- Starting Method Electric
- Number of Cylinders 1
- Displacement L(cu, in) 0.320L
- Engine Shutdown Protection Low Oil Pressure
-
High Water Temperature -
Low Fuel
Alternator Characteristics
- Make/Model NSM K100E
- Output 4.2kVA
- Frequency 50Hz 3000rpm
- Voltage Output 220V AC
- Coupling J609B
- Regulation Capacitor
- Insulation H
-
Controller Characteristics

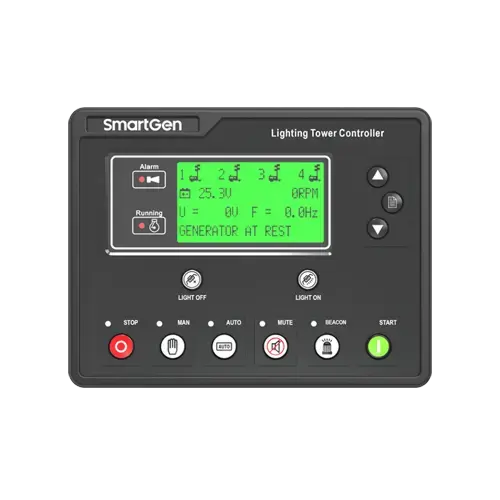

- Controller Smartgen ALC704
- Breaker Make and Size ABB or Equivalent 16A
- IP Protection IP55
- Battery Charger Smartgen
- Battery 12V - 16Amp Hour
Fuel & Running Hours
- Material Metal Self Bunded Tank
- Capacity 100L
- Metering & Level Display Yes - Mechanical
- Total Running Hours 96 Hours
Lighting Characteristics
- Lighting 4 x 150W LED
- Lumens 78 000
- Type of Lamp Rectangle Type LED Lamp
- Individual LED Switch On/Off Yes
- Night Sensor Yes
- Power Plug In Charger Yes
- Lamp No. 4 Lamps / Mast
Mast Tower Characteristics
- Type Telescopic
- Total Height 8M
- Section Type Multi-Sections
- Wind Speed 80KM/H
- Rotation 350 Degrees
- Lights Tiltable Yes Manually
- Operation Type Manual Operated
Weights & Dimensions
- Length 2684 mm
- Width 1180 mm
- Height 1180 mm
- Weight (Dry) 1100 kg
- Weight (Wet) 1250 kg
Products that is Fitted
Yanmar
L70N-DEGLT
NSM
K100E
SmartGen
ALC704
Plusrite
4 x 150W
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
