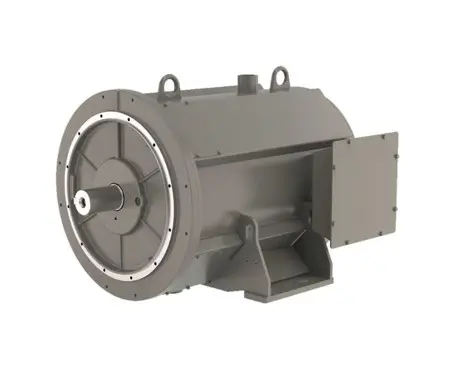

LSAH IP44 Alternators
The Best of Performance
The Nidec Leroy-Somer range of LSAH IP44 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSAH IP44 strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 10 -104 kVA
- Voltage 400v
- Poles 4 Pole
- Speed 1500 rpm
- Max Efficiency 95.7%
- Standard AVR D350
- Excitation Brushless with AVR
- Winding Protection Tropicalised
- Paint RAL7024 Gunmetal Grey
Key Features
- Insulation Class Class H
- Temperature Rise Class F or H
- Number of Leads 6
- Protection IP44
- Altitude <1000 masl
- Overspeed 2250 rpm
- Excitation System AREP
- Sustained Short Circuit Protection (With D350 AVR) Optional
- Short-circuit Current 300% for 10s
Optional Equipment
- Dedicated Voltages Spot Wound
- Spacer Heater High Humidity
- Winding Protection Harsh Environments
- Stator Temp Detector PT100
- Bearing Temp Detector PTC
- Air Inlet Filters Derate by 5%
- Customised Paint RAL Colors
- Digital AVR's D550
-
Custom Cable Glands
Product Range
Overview
Prime Rated kVA & kW
- Model kVA \ kW
- LSAH 42.3 VS0 10 \ 8.0
- LSAH 42.3 S0 15 \ 12.0
- LSAH 42.3 M1 20 \ 16.0
- LSAH 42.3 VL6 33 \ 26.4
-
Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/F
Prime Rated kVA & kW
- Model kVA \ kW
- LSAH 44.3 M4 55 \ 44.0
- LSAH 44.3 M6 71 \ 57.0
- LSAH 44.3 L8 82 \ 66.0
- LSAH 44.3 VL12 104 \ 83.0
-
Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/H
Experience this range of alternators
Would you and your team like to receive training on this product?
We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course
eLearning
Technical Troubleshooting
Mounting Configurations ( Standard )
SAE 4 - 8
SAE 4 - 10
SAE 3 - 10
SAE 3 - 11.5
SAE 2 - 10
SAE 2 - 11.5
Double Bearing
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
