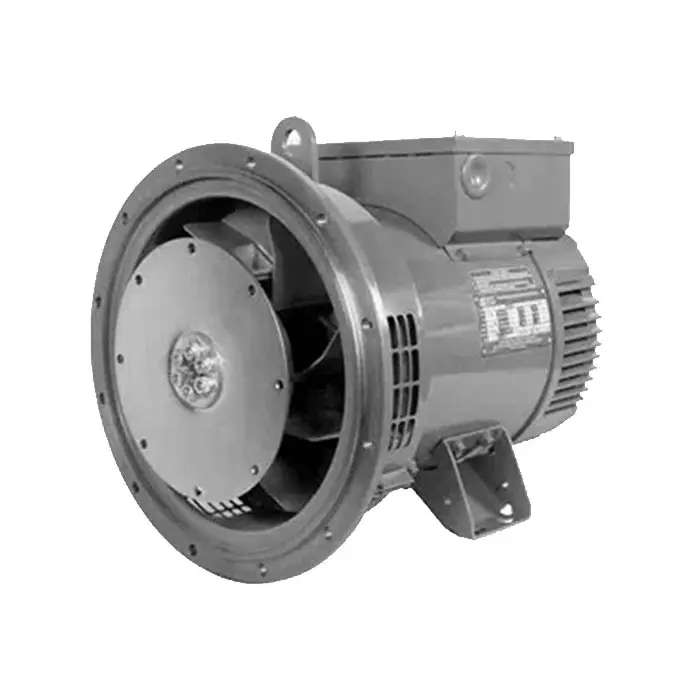

LSAP42.3 Alternators

The Best of Performance

The Nidec Leroy-Somer range of LSAP42.3 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSAP42.3 strikes the perfect balance between compactness, reliability, performance and longevity.


Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.

​RETURN T​​O ALTERNATOR MAIN PAGE

​RETURN T​​O NIDEC POWER HOME PAGE

​RETURN T​​O LEROY SOMER HOME PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

Product Range Overview

Refer to the table below

Characteristics

  • Power 25 -63 kVA
  • Voltage 400V
  • Poles 4 Pole
  • Speed 1500 rpm
  • Max Efficiency 91.5%
  • Standard AVR R120
  • Excitation Brushless with AVR
  • Winding Protection Tropicalised
  • Paint RAL7024 Gunmetal Grey

Key Features

  • Insulation Class Class H
  • Temperature Rise Class H
  • Number of Leads 12
  • Protection IP23
  • Altitude <1000 masl
  • Overspeed 2250 rpm
  • Excitation System Shunt
  • Sustained Short Circuit Protection (With D350 AVR) Optional
  • Short-circuit Current 300% for 10s

Optional Equipment

  • Dedicated Voltages Spot Wound
  • Spacer Heater High Humidity
  • Winding Protection Harsh Environments
  • Stator Temp Detector PT100
  • Bearing Temp Detector PTC
  • Air Inlet Filters Derate by 5%
  • Customised Paint RAL Colors
  • Digital AVR's D350
  • Custom Cable Glands

Product Range

Overview

Prime Rated kVA & kW

  • Model kVA \ kW
  • LSAP 42.3B 25 \ 20.0
  • LSAP 42.3C 30 \ 24.0
  • LSAP 42.3E 35 \ 28.0
  • LSAP 42.3F 40 \ 32.0
  • LSAP 42.3G 45 \ 36.0
  • LSAP 42.3H 50 \ 40.0
  • LSAP 42.3K 63 \ 50.4
  • Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/H

Experience Across All Sectors

Would you and your team like to receive training on this product?


We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course



eLearning

Technical Troubleshooting

Mounting Configurations ( Standard )

SAE 4 - 7.5

SAE 3 - 10

SAE 3 - 11.5

Double Bearing

(Non Stock Option)

Spare Parts & Technical Support

Please click on the link below for spare parts service and maintenance

  Purchase Parts Online

DOWNLOAD:

Brochures

Technical Data Sheet

Options

Drawings

Maintenance and Parts Manual
