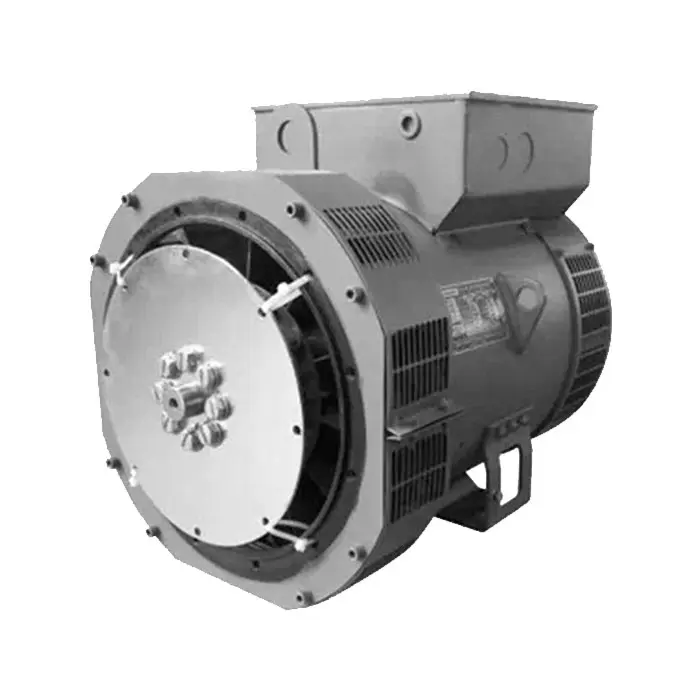

LSAP44.3 Alternators
The Best of Performance
The Nidec Leroy-Somer range of LSAP44.3 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSAP44.3 strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 70 -160 kVA
- Voltage 400V
- Poles 4 Pole
- Speed 1500 rpm
- Max Efficiency 93.2%
- Standard AVR R120
- Excitation Brushless with AVR
- Winding Protection Tropicalised
- Paint RAL7024 Gunmetal Grey
Key Features
- Insulation Class Class H
- Temperature Rise Class H
- Number of Leads 6
- Protection IP23
- Altitude <1000 masl
- Overspeed 2250 rpm
- Excitation System Shunt
- Sustained Short Circuit Protection (With D350 AVR) Optional
- Short-circuit Current 300% for 10s
Optional Equipment
- Dedicated Voltages Spot Wound
- Spacer Heater High Humidity
- Winding Protection Harsh Environments
- Stator Temp Detector PT100
- Bearing Temp Detector PTC
- Air Inlet Filters Derate by 5%
- Customised Paint RAL Colors
- Digital AVR's D350
-
Custom Cable Glands
Product Range
Overview
Prime Rated kVA & kW
- Model kVA \ kW
- LSAP 44.3A 70 \ 56
- LSAP 44.3B1 75 \ 60
- LSAP 44.3B2 80 \ 64
- LSAP 44.3C 100 \ 80
- LSAP 44.3D 125 \ 100
- LSAP 44.3E 140 \ 112
- LSAP 44.3H 160 \ 128
-
Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/H
Experience Across All Sectors
Would you and your team like to receive training on this product?
We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course
eLearning
Technical Troubleshooting
Mounting Configurations ( Standard )
SAE 3 - 10
SAE 3 - 11.5
SAE 2 - 11.5
Double Bearing
(Non Stock Option)

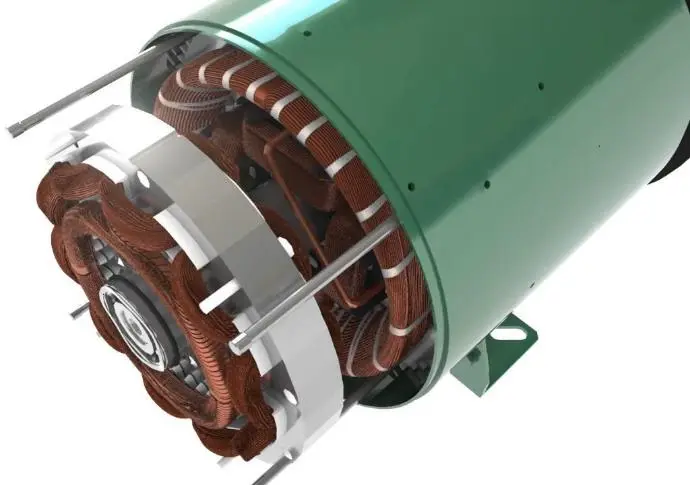

Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
