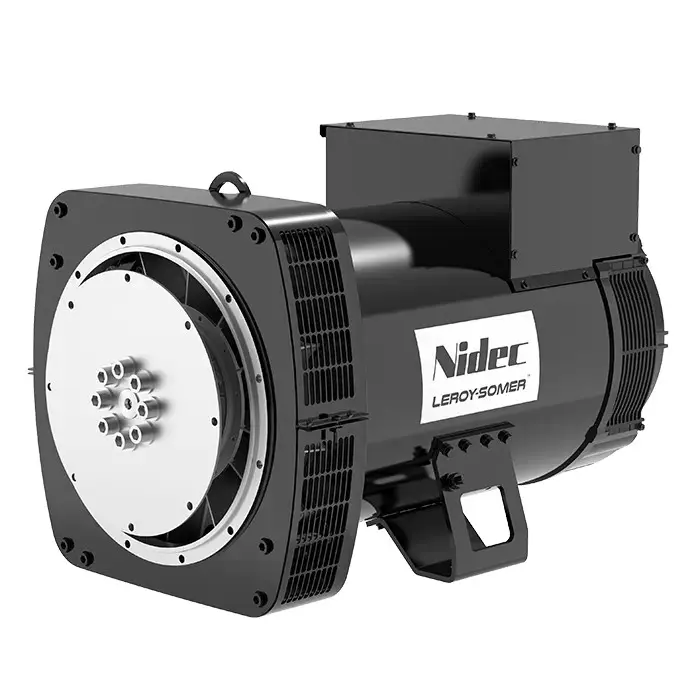

TAL44 Alternators
The Best of Performance
The Nidec Leroy-Somer range of TAL44 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the TAL44 strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 70 -200 kVA
- Voltage 400V
- Poles 4 Pole
- Speed 1500 rpm
- Max Efficiency 95.8%
- Standard AVR R120
- Excitation Brushless with AVR
- Winding Protection Tropicalised
- Paint RAL9005 Matt Black
Key Features
- Insulation Class Class H
- Temperature Rise Class H
- Number of Leads 6
- Protection IP23
- Altitude <1000 masl
- Overspeed 2250 rpm
- Excitation System Shunt
- Sustained Short Circuit Protection (With D350 AVR) Optional
- Short-circuit Current 300% for 10s
Optional Equipment
- Dedicated Voltages Spot Wound
- Spacer Heater High Humidity
- Winding Protection Harsh Environments
- Stator Temp Detector PT100
- Bearing Temp Detector PTC
- Air Inlet Filters Derate by 5%
- Customised Paint RAL Colors
- Digital AVR's D350
-
Custom Cable Glands
Product Range
Overview
Prime Rated kVA & kW
- Model kVA \ kW
- TAL 44A 70 \ 56
- TAL 44B 80 \ 64
- TAL 44C 90 \ 72
- TAL 44D 100 \ 80
- TAL 44E 125 \ 100
- TAL 44H 135 \ 108
- TAL 44J 150 \ 120
- TAL 44K 165 \ 132
- TAL 44L 180 \ 144
- TAL 44M 200 \ 160
-
Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/H
Experience this range of alternators
Would you and your team like to receive training on this product?
We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course
eLearning
Technical Troubleshooting
Mounting Configurations ( Standard )
SAE 3 - 11.5
SAE 2 - 11.5
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
