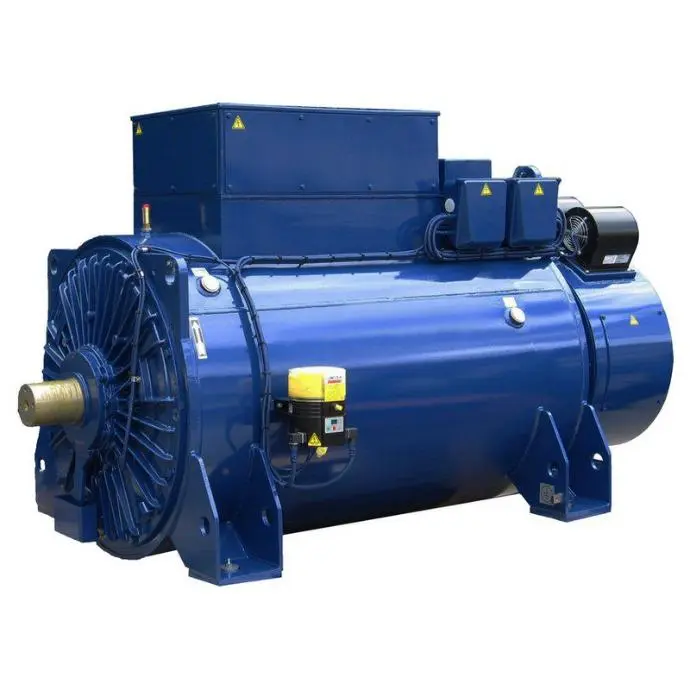

LSA Wind Turbine Alternators
The Best of Performance
The Nidec Leroy-Somer range of LSA Wind Turbine alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the LSA Wind Turbine strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 600kW -5MW
- Voltage 400V -15kV
- Poles 4 -6 -8 Pole
- Speed Fixed or Variable Speed
- Max Efficiency 93.8%
- Standard AVR R120
- Excitation Brushless with AVR
- Winding Protection Tropicalised
-
Paint
Key Features
- Insulation Class Class H
- Temperature Rise Class H
- Number of Leads 12
- Protection IP23
- Altitude <1000 masl
- Overspeed 2250 rpm
- Excitation System Shunt
- Sustained Short Circuit Protection (With D350 AVR) Optional
- Short-circuit Current 300% for 10s
Optional Equipment
- Dedicated Voltages Spot Wound
- Spacer Heater High Humidity
- Winding Protection Harsh Environments
- Stator Temp Detector PT100
- Bearing Temp Detector PTC
- Air Inlet Filters Derate by 5%
- Customised Paint RAL Colors
- Digital AVR's D350
-
Custom Cable Glands
Experience Across All Sectors
Would you and your team like to receive training on this product?
We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course
eLearning
Technical Troubleshooting
Mounting Configurations ( Standard )
Double Bearing
Spare Parts & Technical Support
Please click on the link below for spare parts service and maintenance
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
