MV/HV Apparatus
Safe, Efficient and Convenient
Tengen actively embraces the smart future, focuses on customers and is committed to the innovation and development of intelligent Internet. Based on ecology, drive the development of smart energy industry and make electric energy more safe and efficient for the benefit of mankind.
MV Switchgear Product Range

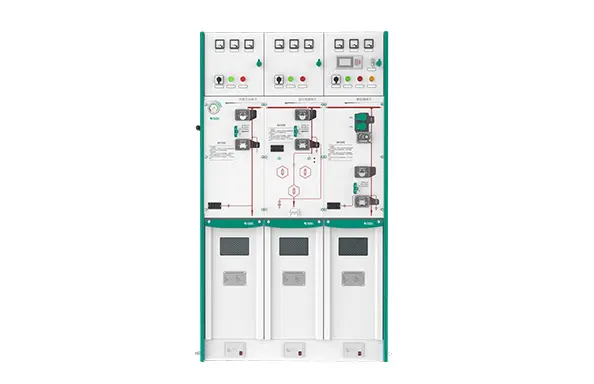

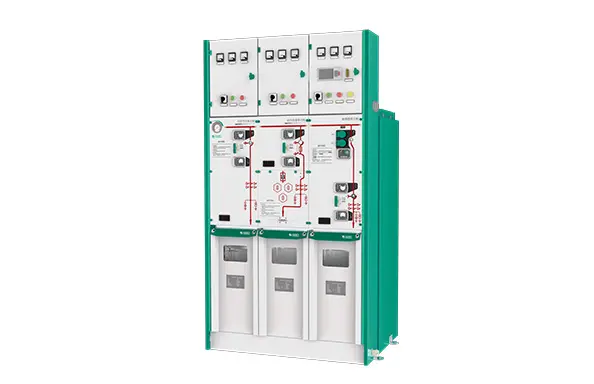

TGXR6-12KV SF6 Ring Main Unit
Rated Voltage: 12KV
Rated Current: 630/1250A
TGXR6-24KV SF6 Ring Main Unit
Rated Voltage: 24KV
Rated Current: 630A
TGXR6-40.5KV SF6 Ring Main Unit
Rated Voltage: 40.5KV
Rated Current: 1250/2500A

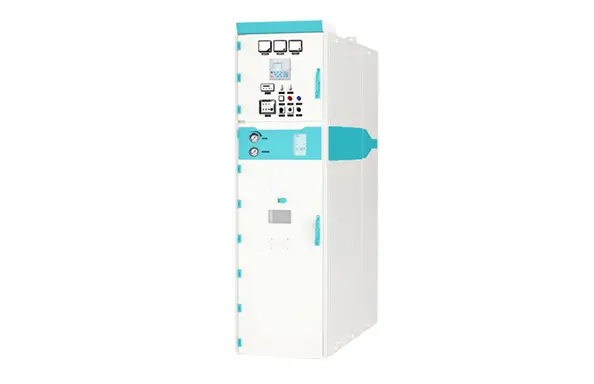

KYN28-12 Series Armored Movable AC Metal-Enclosed
Rated Voltage: 12KV
Rated Current: 630 - 4000A

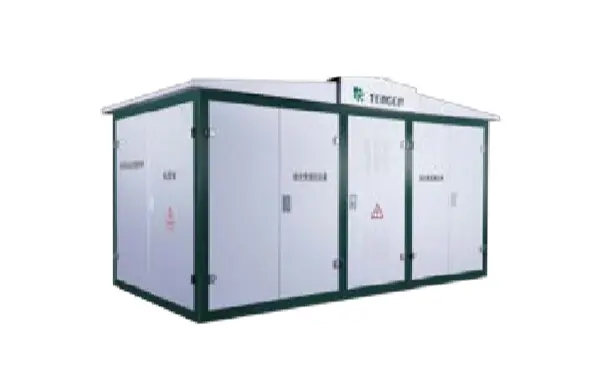

YB - 12/0.4 Series High Voltage/Low Voltage Prefabricated Substations
Rated Voltage: 12KV
Rated Current: 400/630A

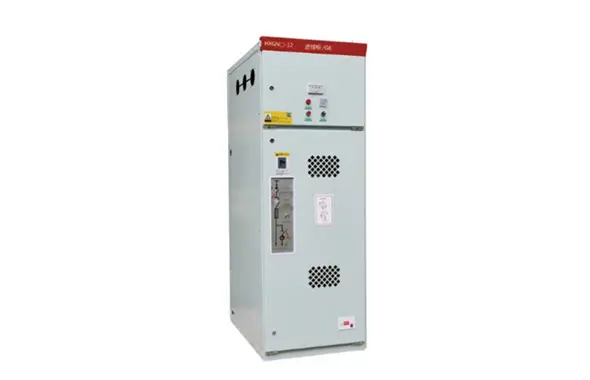

HXGN -12 Series AC Metal Enclosed Ring Main Unit
Rated Voltage: 12KV
Rated Current: 630/1250A

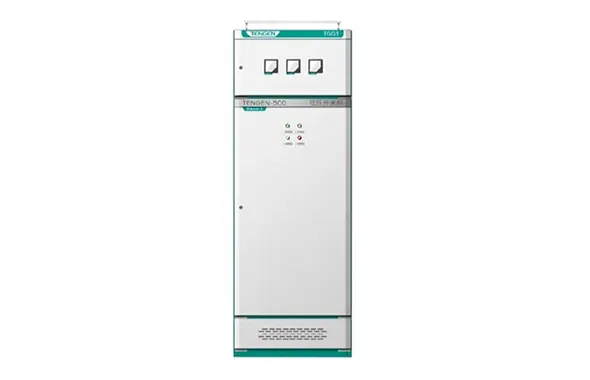

TGG1 Fixed Type Low Voltage
Rated Voltage: AC380V
Main Busbar Rated Current: 630 - 4000A

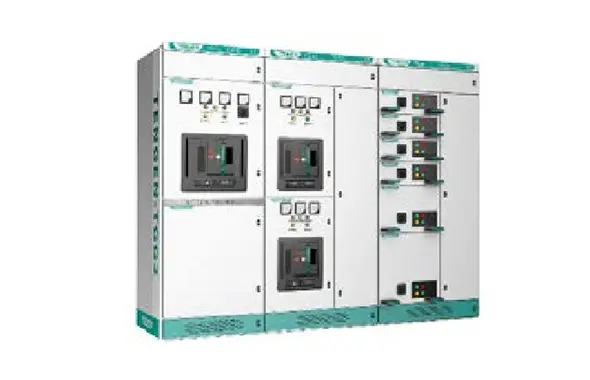

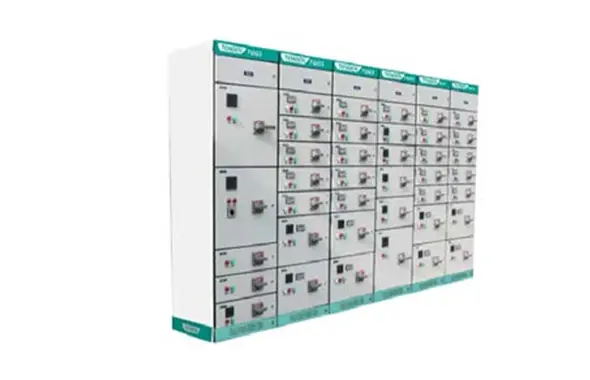

TGG2 Withdrawable Type Low Voltage
Rated Voltage: AC380V
Main Busbar Rated Current: 630 - 6300A

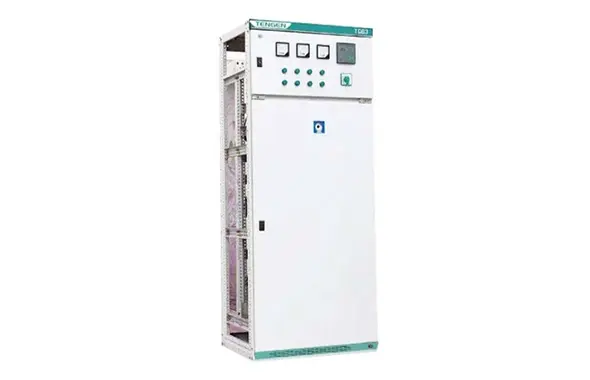

TGG3 Low Voltage Capacitor Compensation
Rated Voltage: AC380V
Main Busbar Rated Current: 63.8 - 530.3A
TGG5 Fixed Separation Low Voltage
Rated Voltage: AC380V
Main Busbar Rated Current: 630 - 4000A
Vacuum Circuit Breakers Product Range
ZN85-40.5 Indoor High-Voltage AC
Rated Voltage: 40.5KV
Rated Current: 630A - 2000A
ZN63A-24 Indoor High-Voltage AC
Rated Voltage: 24KV
Rated Current: 630A - 3150A

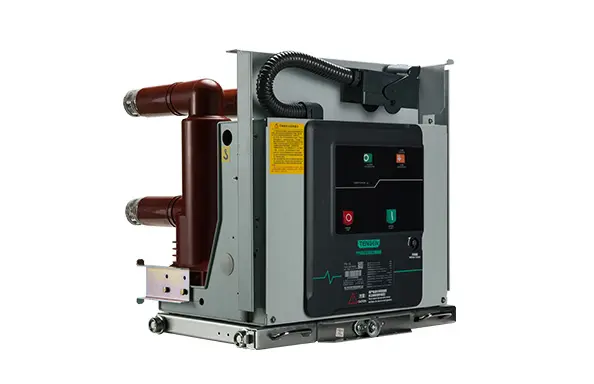

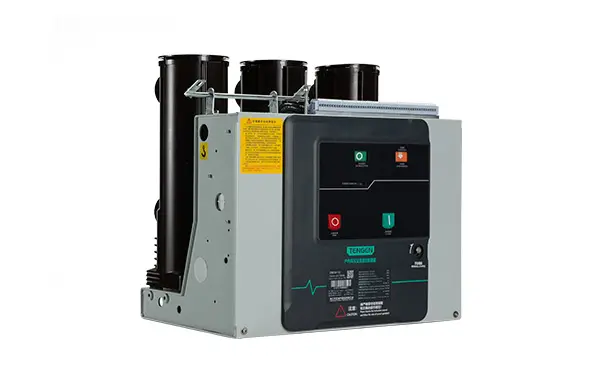

ZN63A-12 (VS1) Indoor High-Voltage AC
Rated Voltage: 40.5KV
Rated Current: 630A - 2000A
ZN7-40.5 Outdoor High-Voltage AC
Rated Voltage: 40.5KV
Rated Current: 1250A - 2000A
VTG-24 Indoor High-Voltage AC
Rated Voltage: 24KV
Rated Current: 630A - 3150A
VTG-40.5 Indoor High-Voltage AC
Rated Voltage: 40.5KV
Rated Current: 630A - 2500A
VTM-12 Indoor High-Voltage AC Permanent
Magnet
Rated Voltage: 12KV
Rated Current: 630A - 4000A

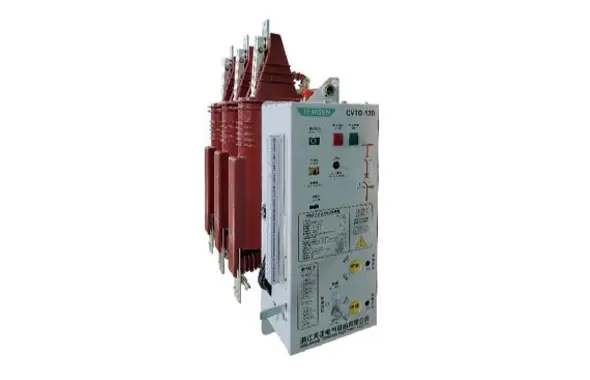

CVTG-12 Indoor High-Voltage Three-Position
Rated Voltage: 12KV
Rated Current: 630A - 1250A
VTG-12 Solid-Sealed Indoor High-Voltage AC
Rated Voltage: 412KV
Rated Current: 630A - 4000A

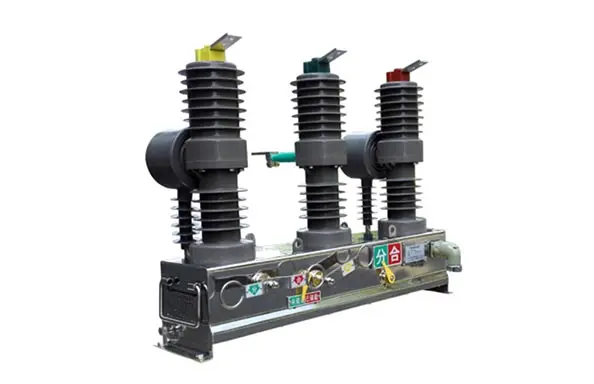

ZW32-12(G)T Outdoor High-Voltage AC
Rated Voltage: 12KV
Rated Current: 630A/1250A

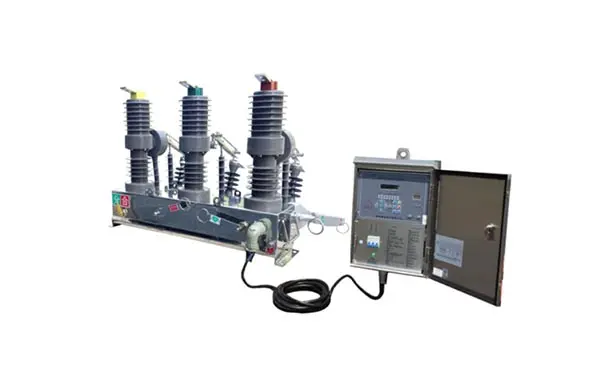

ZW32-12(G)/M Outdoor Medium-Voltage AC
Permanent Magnet
Rated Voltage: 12KV
Rated Current: 630A/1250A
Isolating Switches & Load Switches Product Range

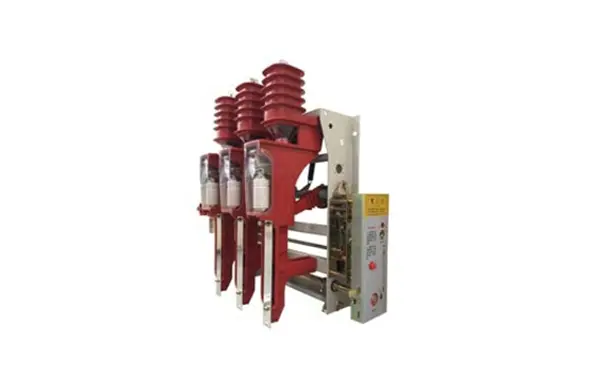

FTG-12R/T125-50 Indoor High-Voltage AC
Vacuum Load Switch
Rated Current: 125A
Rated Voltage: 12kV
(H)GW4 Series Outdoor High-Voltage AC
Disconnector
Rated Current: 400A - 2000A
Rated Voltage: 12/40.5kV

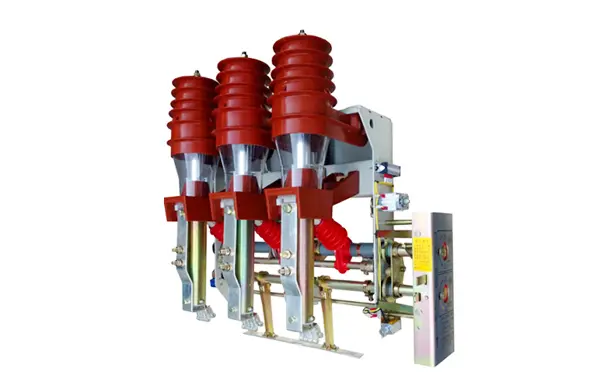

FZN25-12(D)/t630-20 Indoor Medium-Voltage
AC Vacuum Load Switch
Rated Current: 630/200A
Rated Voltage: 12kV
FN12-12(D)T630-20 Indoor High-Voltage Pressure-Operated Load Switch
Rated Current: 630/1250A
Rated Voltage: 12kV

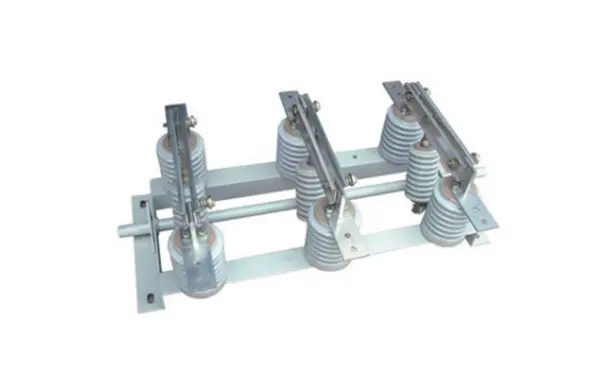

GN19-12 Indoor High-Voltage AC Isolating Switch
Rated Current: 400-1250A
Rated Voltage: 12kV

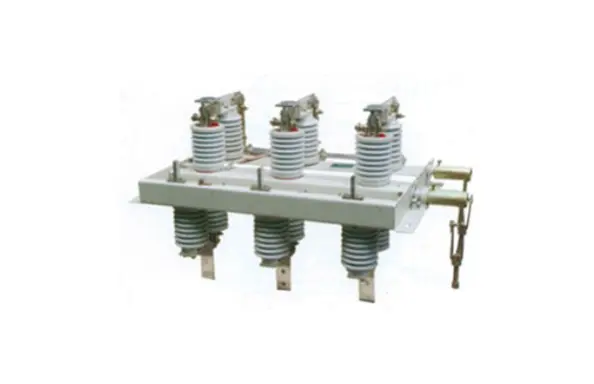

GN30-12(D) Indoor High-Voltage AC Isolating Switch
Rated Current: 400-1250A
Rated Voltage: 12kV
Other Product Range

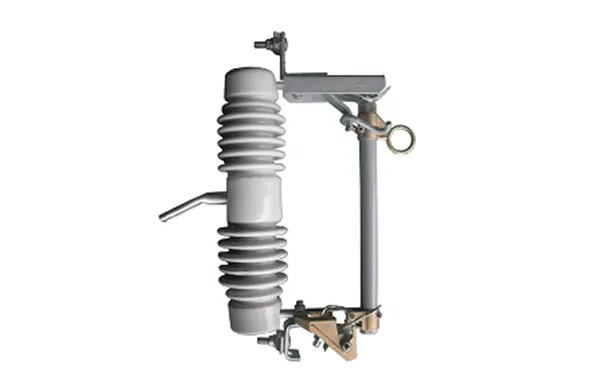

Drop-Out Fuse Series
Rated Voltage: 12kV
Rated Current: 100/200A

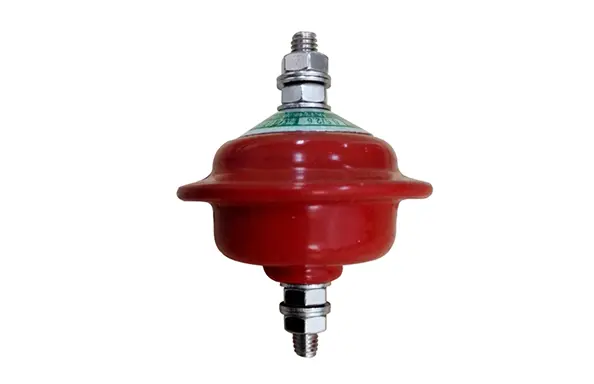

0.28 - 17kV Series Polymeric Housed Metal
Oxide Surge Arresters
Rated Voltage: 0.28 - 51kV
Rated Current: 1.5/5KA
