Pure Energy Solutions for Sub-Saharan Africa



Generator Range​

A Sustainable Future

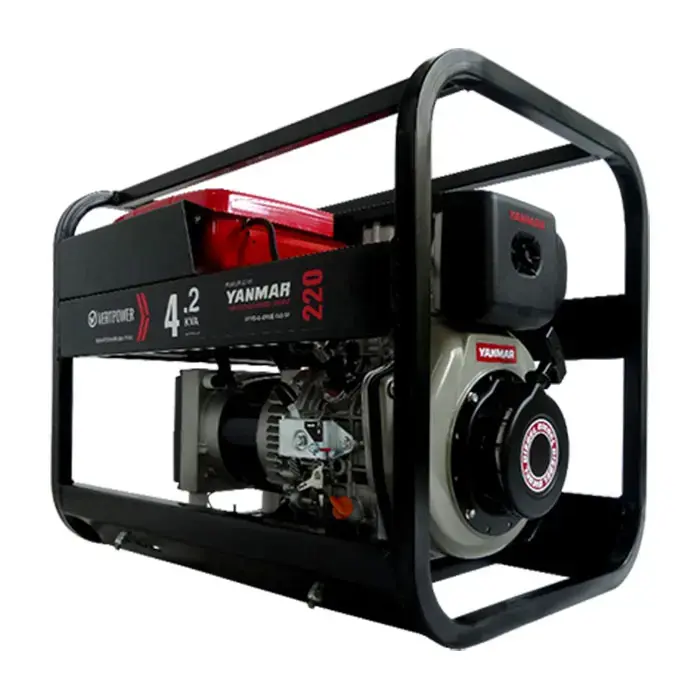

Yanmar diesel engines paired with the NSM alternators to give you a powerful, compact but silent generator that are easy to move around. These generators are designed to be durable and withstand long operating periods. They also operate with low fuel consumption resulting in low operation costs.

​RETURN TO PORTABLE GENERATOR MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO SPARE PARTS PAGE

Product Range Overview

Refer to the table below

Characteristics

  • Engine Type Vertical Cylinder, 4-Stroke
  • Power 4.2kW - 8kW
  • Cylinder Single
  • Speed 3000 & 3600rpm
  • Cooling Forced Air-Cooling by Flywheel Fan
  • Starting System Recoil or Electric
  • Injection Type Direct
  • Emissions Regulations Non-Regulated Territories

Product Range

Overview

Single Phase Generator Model

  • Alternator Model Engine Model
  • K100E L70N
  • K100G L100N
  • KR100G L100N

Rated Output

  • Single Phase Model kVA.....Regulation........V
  • VPPYG_D_4200M 4.2.....Capacitor.....220v
  • VPPYG_D_6000E 6.0.....Capacitor.....220v
  • VPPYG_D_6000E 6.0.........AVR.........220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Three Phase Generator Model

  • Alternator Model Engine Model
  • ZR100SC L100N

Rated Output

  • Three Phase Model kVA.....Regulation........V
  • VPPYG_D_6000E 6.0.........AVR.........400v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

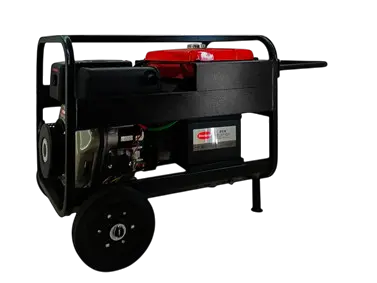

Welder Model

  • Alternator Model Engine Model
  • WS200AC L100N

Rated Output

  • Welder Model kVA.....Regulation........V
  • VPPYW_D_6000E 6.0.....Capacitor.....220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Yanmar Genuine Part Maintenance

Would you and your team like to receive training on this product?


We offer comprehensive sales and technical training courses to all our of our customers.
View our next training course



eLearning

Technical Troubleshooting

Spare Parts & Technical Support

Please click on the link below for spare parts service and maintenance

  Purchase Parts Online

DOWNLOAD:

Brochures

Technical Data Sheet

Options

Drawings

Maintenance and Parts Manual
