Leroy Somer Low Voltage Alternators

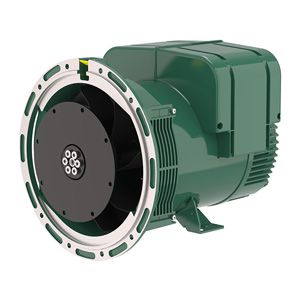

 Products: Leroy Somer LSAP 40

Odoo image and text block

Overview

Manufactured by Leroy Somer

Brushless alternator with exciter
Single bearing arrangement
Prime mover : diesel or gas engines

Compliance with :
IEC, VDE, NEMA, BS, CSA, UL1446, CE low voltage

Technical Features


Power Range (Elec) 50hz:

5 kVA - 20 kVA    (Prime Rated)

Power Range (Elec) 50hz

5.5 kVA - 22 kVA    (Standby Rated)

Power Range (Mech):

4 kW - 16 kW    (Prime Rated)

Power Range (Mech) 50hz

5 kW - 18 kW    (Standby Rated)

Voltages:

220 v : 380v - 415v  :  525v - 550v

Speed Range

Four Pole (1500rpm)

Temp & Altitude Rating:

40 Deg C + < 1000 M.A.S.L

Protection

IP23 as Standard

Connection

6 Leads (12 Optional)

Control System

Self Regulated Brushless with AVR

Insulation Class + Temp Rise

Class H + H Temp Rise

AVR Model & Governing

R120  (1% with 4 % Engine Governing)

Mounting Configurations ( Standard)

SAE FLYWHEEL & BELLHOUSING
CLICK HERE TO CONFIRM MOUNTING
SAE 5 - 7.5

SAE 4 - 7.5

SAE 3 - 10

SAE 3 - 11.5

DOUBLE BEARING

Technical Feature Downloads

Brochure

Click to Download

Data Sheet

Click to Download

AVR Data Sheet

Click to Download

Service & Maintenance

Click to Download
