Hybrid Power Solution - 40kWh
The Best of Performance

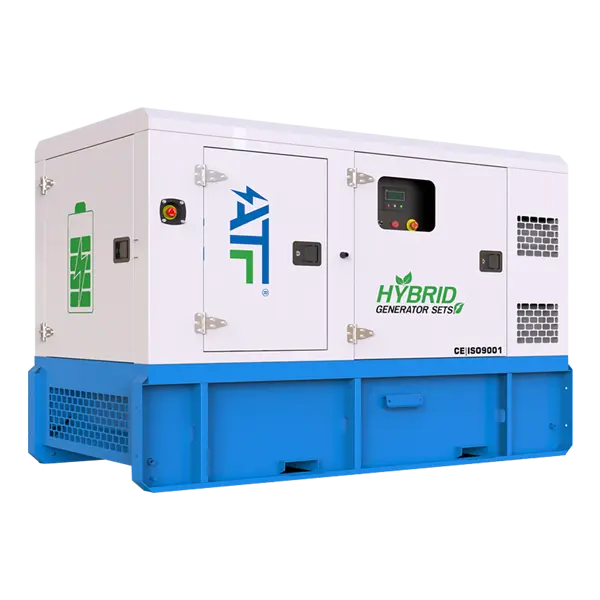

ATF proudly introduces its next-generation intelligent hybrid generator—an advanced energy solution that goes beyond traditional power generation. By combining diesel power, high-efficiency energy storage and clean solar technology in one integrated system, it can draw on different energy sources to meet changing power demands. Solar energy can contribute to the supply, while the battery stores energy for use when needed and the generator provides additional support. This intelligent approach is designed to improve energy efficiency, support a more stable power supply and reduce reliance on diesel generation alone. Flexible and adaptable, the system is suited to a range of applications where dependable power and more sustainable energy use are priorities.
Multi-Applications In One
Within the hybrid set, diesel-only mode uses the generator to supply power directly when required. It provides dependable support for continuous, high-power loads and keeps essential equipment running when solar or stored energy is unavailable or insufficient.
In the hybrid set, battery-only mode supplies stored energy without running the generator, enabling quiet, emission-free operation at the point of use. It is well suited to night-time operation and noise-sensitive settings, such as residential areas and indoor environments, where minimizing disruption is important.
The hybrid set combines diesel generation with battery power to respond to changing loads. When demand rises sharply, the battery can support the generator, helping maintain stable power for applications with high starting currents, such as motor start-ups. This coordinated operation is designed to support reliable performance and help protect sensitive equipment from power fluctuations.
Solar panels capture clean energy to charge the hybrid set’s battery, helping reduce diesel fuel use and operating costs when conditions allow. By making greater use of solar power, the system can also lower emissions associated with fuel consumption.
Product Parameters Overview
Refer to the table below
Parameters Characteristics
- Model YM12-40HB5
-
Diesel Generator Set
- Rated Power 12kW
- Output Voltage 230V / 400V
- Phase 3PH
- Frequency 50Hz
- Fuel Tank 300L
-
Inverter
- Display LCD Screen
- Communication Port BMS Communication, Signal Contact
- Parallel Operation Supported
- Solar PV Input Supported
Parameters Characteristics
-
Energy Storage Battery
- Total Battery Energy 40kWh
- Total Battery Capacity 800Ah
- Battery Quantity 4
- Battery Type Lithium Iron Phosphate
- Battery Configuration 16S1P
- Nominal Voltage / Each 51.2V
- Battery Capacity / Each 200Ah
- Rated Energy / Each 10.24kWh
- Communication Interface RS485 / RS232 / CAN
- Cooling System Air Cooled
- Cycle Life ≥ 6000 Cycles
