Renewable Energy Projects: Yanmar
Pure Energy Solutions for Sub-Saharan Africa
H2 Fuel Cells
A Sustainable Future
The HP35FA1Z hydrogen fuel cell power generation system with a power output of 35kW does not emit greenhouse gases such as carbon dioxide (CO2) or air pollutants like nitrogen oxides (NOx) during operation, ensuring a clean power supply. The system’s compact design includes all necessary operating equipment, simplifying installation and achieving one of the smallest footprints in its power output class. It supports the integrated control of up to 16 units, allowing for easy adjustment of operating units and output control based on power demand and available hydrogen supply, as well as straightforward expansion to meet decarbonization goals.
Main features
- Zero emissions of greenhouse gases and air pollutants during power generation.
- Simplified on-site installation due to the inclusion of related equipment such as grid-interconnected power conversion devices.
- Compact design achieving one of the smallest installation footprints in its power output class.
- Capable of integrated control of up to 16 units, adjustable based on power demand and available hydrogen supply.
- Autonomous power output (blackout specification) enabling power supply during outages.
Product Range Overview
Refer to the table below
Characteristics
- Type HP35FA1Z
- Power Generation Efficiency 51.2%
- Power Output 35kW During Grid Connection
-
35kVA During Standalone Operation - Type of Fuel Cell Proton Exchange Membrane Fuel Cell (PEFC)
- Fuel Hydrogen, Purity ≥99.97%
- Control Units Up to 16 Units During Grid Connection Operation
- Size Width 2,340mm x Depth 900mm x Height 2,290mm
- Weight 1,650kg
Yanmar Green Challenge 2050

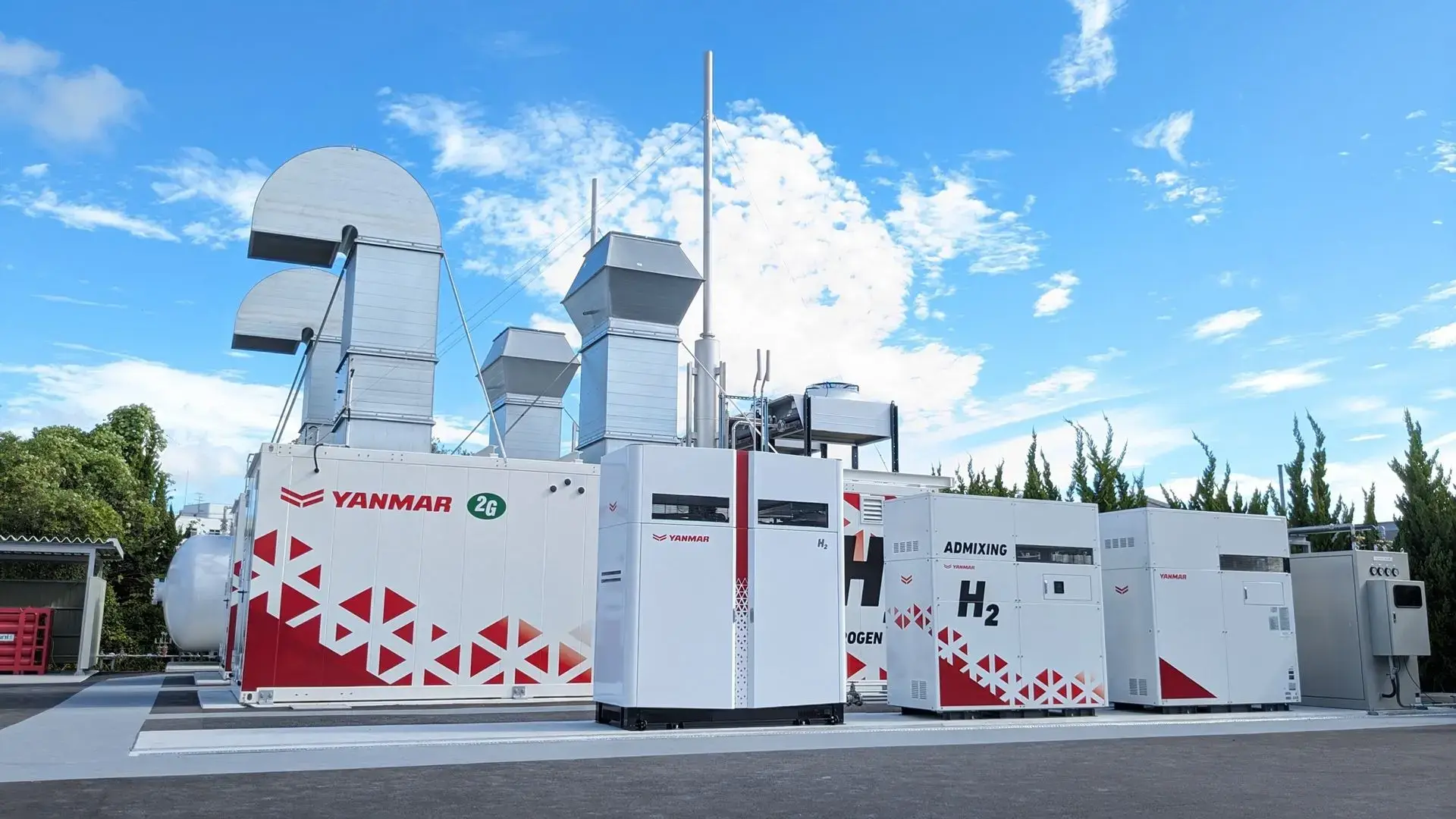

The Yanmar Clean Energy Site
Under the banner of YANMAR GREEN CHALLENGE 2050, the Yanmar Group is committed to developing environmentally considerate solutions, including renewable energy (RE) and hydrogen, not only for their own operations but also to assist customers in realizing decarbonization. This initiative has led to the establishment of the YANMAR CLEAN ENERGY SITE, situated in the Okayama Testing Center on the premises of Yanmar Energy System Manufacturing Co., Ltd., which manufactures gas heat pump air conditioners (GHP) and micro cogeneration systems (CHP). The facility will carry out endurance testing, technical development, and verification tests of clean energy equipment such as hydrogen power generation systems and storage batteries, as well as optimizing their combined operation.
Looking ahead, the aim is to expertly combine existing products with evolving clean energy equipment, offering customized solutions under the Carbon Neutral Package to meet customer needs. Furthermore, the integration of clean energy equipment into the company's own factories will work towards achieving carbon neutrality across the entire production process.
Facility Overview
The facility, known as the YANMAR CLEAN ENERGY SITE, is designed to achieve the following three objectives by installing clean energy equipment centered around hydrogen power generation systems and conducting research and development.
- Verification: Swiftly support customers' efforts towards carbon neutrality by conducting development and verification tests related to carbon neutrality.
- Awareness: Raise awareness of Yanmar ES's commitment to carbon neutrality.
- Dialogue: Create a platform for dialogue with customers about their thoughts and challenges related to carbon neutrality, fostering collaborative solutions.
Key Equipment
1) Hydrogen Power Generation System
- Hydrogen Fuel Cell Power Generation System (under in-house development) The system offers a quiet, weather-resistant, emissions-free, and remarkably efficient power supply. It allows for the connection of multiple units to create customized systems aligned with desired power capacities.
- Hydrogen-Mixed Combustion Engine Micro Cogeneration System (under in-house development) Based on the established micro cogeneration system CP35D2 designed for municipal gas, this system enables operation with a blend of hydrogen fuel in city gas. Like the gas version, multiple units can be connected to propose systems tailored to required power levels.
- Hydrogen Fuel Engine Cogeneration System by 2G Energy AG (Germany) With the ability to regulate output to match demand, this system offers both thermal and electrical supply utilizing hydrogen fuel, making it suitable for extensive projects. Benefiting from Yanmar's advanced maintenance technology, comprehensive support is provided even post-installation. The setup involves two units: one for exclusive hydrogen combustion and the other for a blend of city gas and hydrogen combustion.
2) Energy Storage System (Battery) (Under In-House Development)
This system stores surplus electricity generated from sources like solar and hydrogen power, contributing to the efficient and stable operation of energy.
3) Hydrogen Production Facility
Utilizing Italy's Enapter-manufactured hydrogen production system, green hydrogen is generated from renewable sources like solar power. This, along with solar energy and Yanmar's proprietary energy storage system (battery), enables streamlined management of green power distribution and the provision of power based on demand, effectively promoting the utilization of renewable energy.
4) Energy Management System (Y-EMS)
Not limited to Yanmar products, this system controls various energy devices based on weather and energy supply-demand conditions, supporting optimal device operation.
