Electric Power Generation: Energie
Pure Energy Solutions for Sub-Saharan Africa
Petrol Engine
Lean Green Power Machines
Energie petrol engines are designed to deliver reliable, efficient and dependable power for a wide range of applications. They are ideally suited for gensets, water pumps, small construction equipment, agricultural machinery and other portable and stationary applications.
These engines offer excellent performance, easy starting and efficient fuel consumption, making them a practical solution for a variety of power requirements. Their compact and robust design provides dependable operation while helping to keep fuel consumption and operating costs under control.
Product Range Overview
Refer to the table below
Single Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.8kW - 14.5kW
- Cylinder Single
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
V-Twin Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 14.6kW - 20.0kW
- Cylinder V-Twin
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
Product Range
Overview
Prime Rated
- Single Cylinder kW \ HP
- VPHL210 4.4 \ 5.8
- VPHL420 8.7 \ 11.7

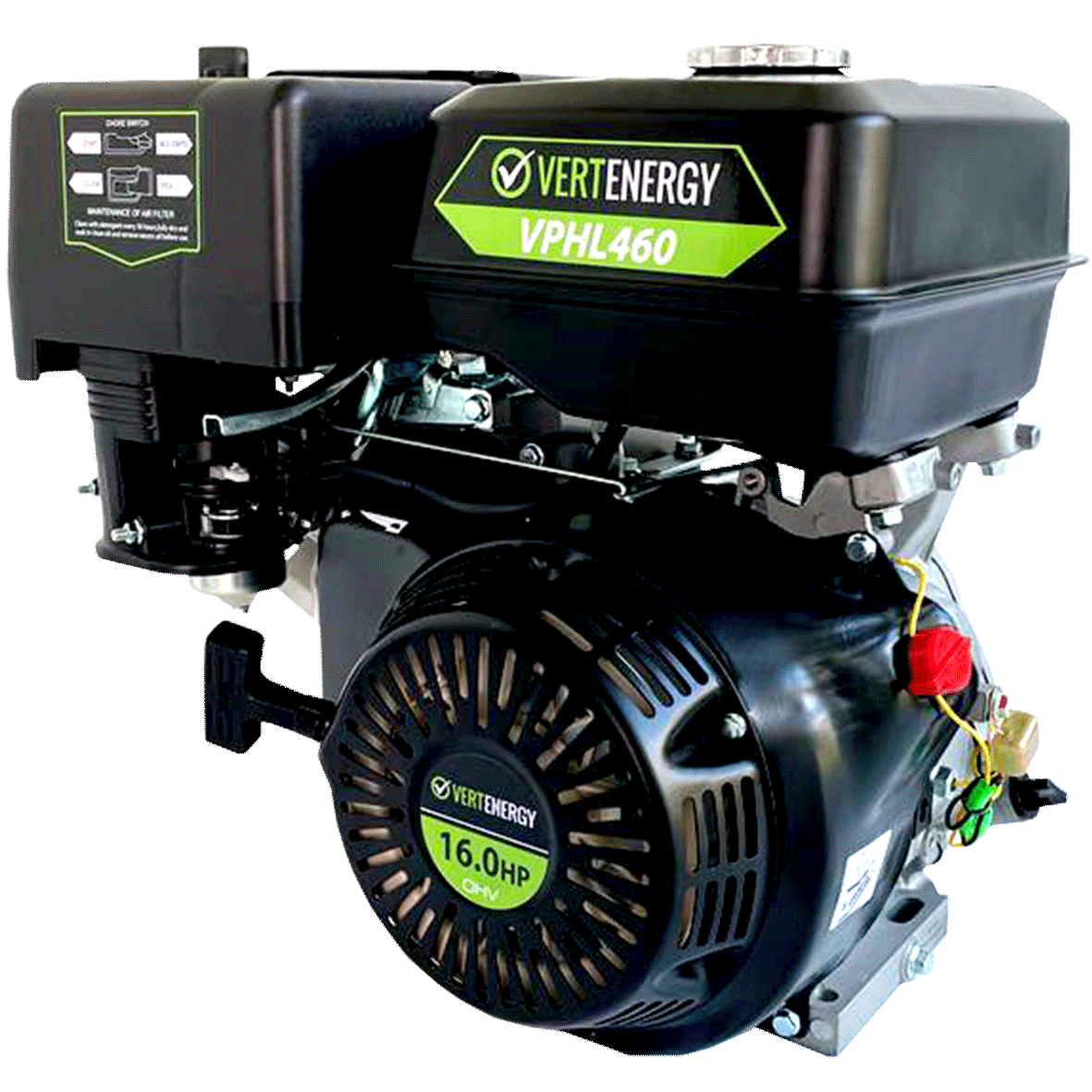

- VPHL460 9.9 \ 13.3
-
Values are at Max Rated Standby Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
Prime Rated
- V-Twin Cylinder kW \ HP
- VPHL750 14.6 \ 19.6
- VPHL1000E 20.0 \ 26.8
-
Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
Mounting Configurations ( Standard )
Taper Shaft
J609B (Generators)
Parallel Keyway Shaft
3/4" & 1" (Industrial)
Threaded Screw Shaft
(Pumps and Rammers)
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
