Industrial Power Products: Energie

Pure Energy Solutions for Sub-Saharan Africa



Generators

Lean Green Power Machines

Energie powered diesel generators are designed to provide reliable, efficient, and cost-effective electrical power for residential, commercial, agricultural, and industrial applications. Available in outputs ranging from 6 kVA to 15 kVA, these generators deliver dependable performance whenever mains power is unavailable or unreliable.

Powered by robust Energie diesel engines, these generators are built to withstand demanding operating conditions while maintaining excellent fuel efficiency and stable power output.

​RETURN TO PORTABLE GENERATOR MAIN PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

​RETURN TO SPARE PARTS HOME PAGE

Product Range Overview

Refer to the table below

Engine Characteristics

  • Engine Type Vertical Cylinder, 4-Stroke
  • Power 8.5kW - 15.6kW
  • Cylinder Single & V-Twin
  • Speed 3000rpm
  • Cooling Forced Air-Cooling by Flywheel Fan
  • Starting System Recoil or Electric
  • Frequency Option 50Hz & 60Hz
  • Fuel Diesel or Petrol
  • Emissions Regulations Non-Regulated Territories

Alternator Characteristics

  • Make NSM
  • Power 6kVA - 15.0kVA
  • Regulation AVR or Capacitor
  • Voltage 220V or 400V
  • Speed 3000rpm
  • Poles 2 Pole
  • Max Efficiency 88%
  • Protection IP23
  • Winding Protection Tropicalised

Diesel Generator Range

Overview

Single Phase Generator Model

  • Alternator Model Engine Model (Single Cylinder)
  • K100E VPHLD475
  • K100E VPHLD475

  • Alternator Model Engine Model (V-Twin Cylinder)
  • CR112SB VPHLD1000
  • CR112MA VPHLD1000

Output Rated

  • Single Phase Model (Single Cylinder) kVA.....Regulation........V
  • VPPVG-D-6000M 6.0.....Capacitor.....220v
  • VPPVG-D-6000M 6.0.........AVR.........220v

  • Single Phase Model (V-Twin Cylinder) kVA.....Regulation........V
  • VPPVG-D-12000E 12.0.........AVR.........220v
  • VPPVG-D-15000E 15.0.........AVR.........220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Three Phase Generator Model

  • Alternator Model Engine Model (V-Twin Cylinder)
  • ZR112SB VPHLD1000
  • ZR112SC VPHLD1000

Output Rated

  • Three Phase Model (V-Twin Cylinder) kVA.....Regulation........V
  • VPPVG-D-12000E 12.0.........AVR.........400v
  • VPPVG-D-15000E 15.0.........AVR.........400v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

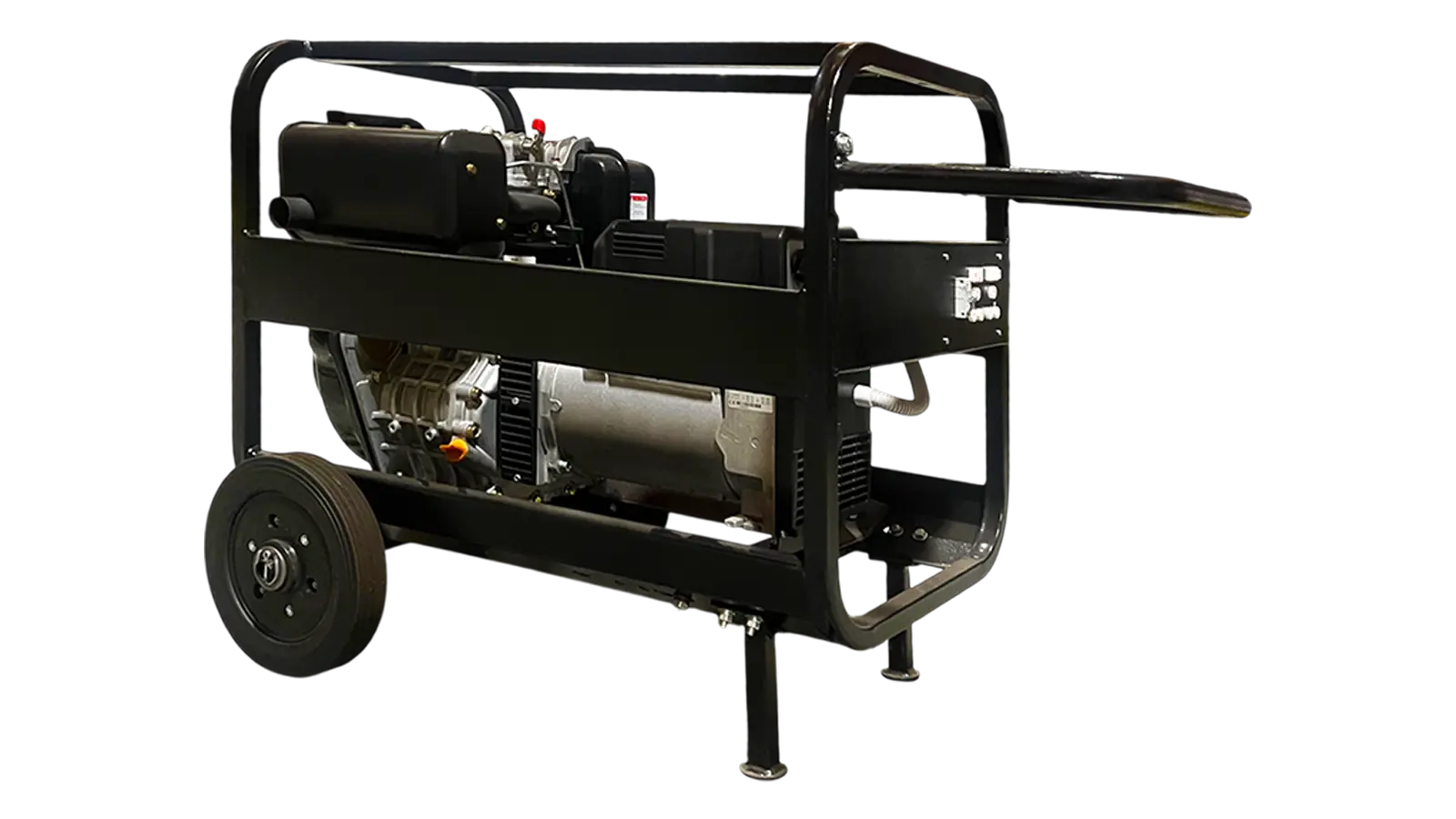

Welder Model

  • Alternator Model Engine Model (Single Cylinder)
  • WS200AC VPHLD475

Output Rated

  • Welder Model
         kVA.....Regulation........V
  • VPPVG-D-7000M 7.0.....Capacitor.....220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Petrol Generator Range

Overview

Single Phase Generator Model

  • Alternator Model Engine Model (Single Cylinder)
  • K100E VPHL460
  • K100G VPHL460
  • KR100G VPHL460
  • C100LH VPHL460
  • C100LH VPHL460
  • C100LL VPHL460

  • Alternator Model Engine Model (V-Twin Cylinder)
  • CR112SB VPHL750
  • CR112SC VPHL750
  • CR112MA VPHL1000

Output Rated

  • Single Phase Model (Single Cylinder) kVA.....Regulation........V
  • VPPVG-P-4200M 4.2.....Capacitor.....220v
  • VPPVG-P-6000M 6.0.....Capacitor.....220v
  • VPPVG-P-6000M 6.0.........AVR.........220v
  • VPPVG-P-7000M 7.0.....Capacitor.....220v
  • VPPVG-P-7000M 7.0.........AVR.........220v
  • VPPVG-P-8000E 8.0.........AVR.........220v

  • Single Phase Model (V-Twin Cylinder) kVA.....Regulation........V
  • VPPVG-P-10000E 10.0.........AVR.........220v
  • VPPVG-P-12000E 12.0.........AVR.........220v
  • VPPVG-P-15000E 15.0.........AVR.........220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Three Phase Generator Model

  • Alternator Model Engine Model (Single Cylinder)
  • ZR100LA VPHL690

  • Alternator Model Engine Model (V-Twin Cylinder)
  • ZR100LB VPHL750
  • ZR112SB VPHL750
  • ZR112SC VPHL1000

Output Rated

  • Three Phase Model (Single Cylinder) kVA.....Regulation........V
  • VPPVG-P-8000E 8.5.........AVR.........400v

  • Three Phase Model (V-Twin Cylinder) kVA.....Regulation........V
  • VPPVG-P-10000E 10.0.........AVR.........400v
  • VPPVG-P-12000E 12.0.........AVR.........400v
  • VPPVG-P-15000E 15.0.........AVR.........400v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

Welder Model

  • Alternator Model Engine Model (Single Cylinder)
  • WS200AC VPHL460

Output Rated

  • Welder Model
         kVA.....Regulation........V
  • VPPVG-P-7000M 7.0.....Capacitor.....220v
  • Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
