Industrial Power Products: Honda
Pure Energy Solutions for Sub-Saharan Africa
Construction
Legendary Reliability Advanced Performance

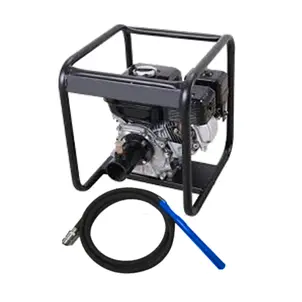

Locally manufactured Vibrating Pokers
Manufactured to exacting European standards with heat-treated wearing parts. Fitted with Heavy duty rubber stiffeners to reduce kinking and over-bending.
our pokers are also fitted with universal couplings for easy and simple insertion into most drive units.
As a value-add, we are able to fit rubber tipped end caps to prevent the damage of wooden shuttering.
We are also able to extend our pokers to a maximum of 15 meters over and above our standard 6 meter length supplied as standard.
Size included: 26mm, 36mm, 48mm, 62mm, 75mm
Product Range Overview
Refer to the table below

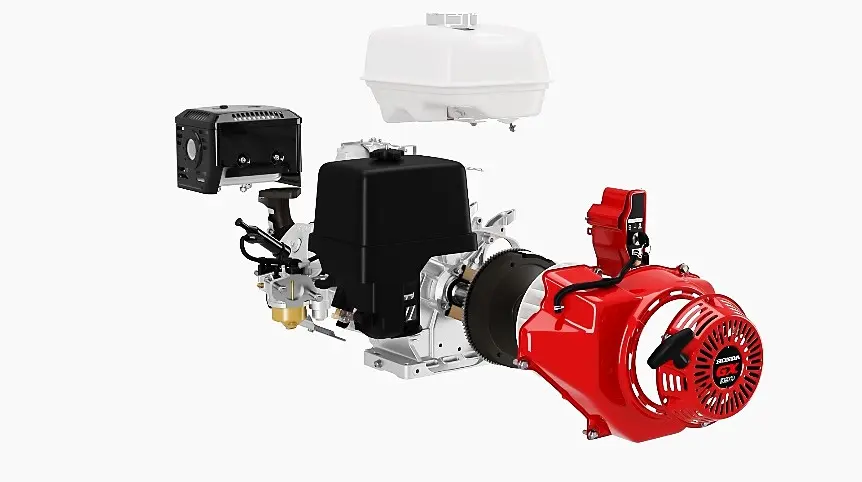

Engine Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.8kW - 14.5kW
- Cylinder Single & V-Twin
- Speed 3000 & 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
Pokers Characteristics
- Tube Size 26mm - 75mm
- Vibration Amplitude 1.2mm - 1.6mm
- Vibration Frequency 100000vpm - 12000vpm
- Length 6m Standard
Engine Range
Overview
Prime Rated
- Single Cylinder kW \ HP
- GX270 6.3 \ 8.4
- GX390 8.1 \ 10.8
-
Values are at Max Rated Standby Power 3600rpm 50hz, 1000masl 1.0pF 27 Deg C
Pokers Range
Overview
Tube Size
-
Model
- CV26 26mm
- CV36 36mm
- CV48 48mm
- CV62 62mm
- CV75 75mm
Vibration Amplitude
-
Model
- CV26 1.2mm
- CV36 1.2mm
- CV48 1.3mm
- CV62 1.6mm
- CV75 1.5mm
Vibration Frequency
-
Model
- CV26 12000vpm
- CV36 12000vpm
- CV48 12000vpm
- CV62 11000vpm
- CV75 10000vpm
The All New Honda EU32i Generator.
Small But Mighty.
DOWNLOAD:
Brochures
Technical Data Sheet
Options
Drawings
Maintenance and Parts Manual
