Industrial Power Products: Honda
Pure Energy Solutions for Sub-Saharan Africa

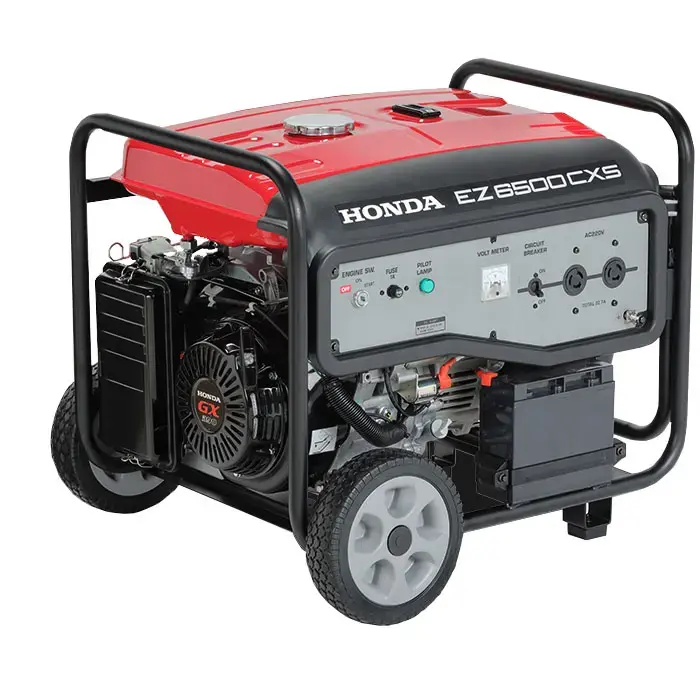

Power Generators
Legendary Reliability Advanced Performance
Honda powered generators up to 10 kVA are trusted worldwide for delivering reliable, efficient, and portable electrical power whenever and wherever it is needed. Powered by proven Honda petrol engines, these generators provide dependable performance for residential, commercial, agricultural, construction, and emergency backup applications.
Designed for ease of use and long-term reliability, Honda powered generators offer stable power output, excellent fuel efficiency, and low maintenance requirements. Whether supplying power to a home during an outage, operating tools on a construction site, or supporting agricultural operations, Honda generators provide a dependable source of electricity.
Product Range Overview
Refer to the table below
Engine Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 5.8kW - 12.0kW
- Cylinder Single & V-Twin
- Speed 3000rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Recoil or Electric
- Frequency Option 50Hz & 60Hz
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
Alternator Characteristics
- Make NSM
- Power 4.2kVA - 10kVA
- Regulation AVR or Capacitor
- Voltage 220V or 400V
- Speed 3000rpm
- Poles 2 Pole
- Max Efficiency 88%
- Protection IP23
- Winding Protection Tropicalised
Petrol Generator Range
Overview

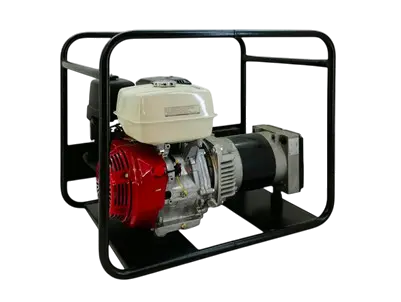

Single Phase Generator Model
- Alternator Model Engine Model (Single Cylinder)
- K100E GP200
- K100G GX390
- KR100G GX390
-
- Alternator Model Engine Model (V-Twin Cylinder)
- CR100LL GX630
- CR112SB GX630
Output Rated
- Single Phase Model (Single Cylinder) kVA.....Regulation........V
- VPPHG-P-4200M 4.2.....Capacitor.....220v
- VPPHG-P-6000M 6.0.....Capacitor.....220v
- VPPHG-P-6000M 6.0.........AVR.........220v
-
- Single Phase Model (V-Twin Cylinder) kVA.....Regulation........V
-
VPPHG-P-8000E
8.0.........AVR.........220v
-
VPPHG-P-10000E
10.0.........AVR.........220v
-
Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

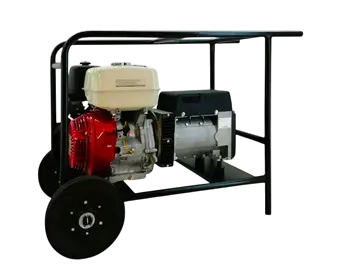

Three Phase Generator Model
- Alternator Model Engine Model (Single Cylinder)
- ZR100SC GX390
-
- Alternator Model Engine Model (V-Twin Cylinder)
- ZR100LA GX630
- ZR100LB GX630
Output Rated
- Three Phase Model (Single Cylinder) kVA.....Regulation........V
- VPPHG-P-6000M 6.0.........AVR.........400v
-
- Three Phase Model (V-Twin Cylinder) kVA.....Regulation........V
- VPPHG-P-8000E 8.0.........AVR.........400v
- VPPHG-H-10000E 10.0.........AVR.........400v
-
Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C

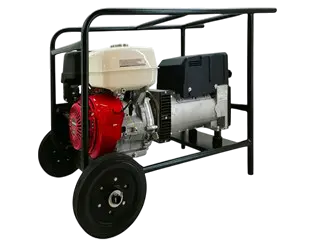

Welder Model
- Alternator Model Engine Model (Single Cylinder)
- WS200AC GX390
Output Rated
-
Welder Model
kVA.....Regulation........V - VPPHG-P-7000M 7.0.....Capacitor.....220v
-
Values are at Rated Continuous Power 3000rpm 50hz, 1000masl 1.0pF 27 Deg C
