Industrial Power Products: Honda
Pure Energy Solutions for Sub-Saharan Africa
High Pressure Pumps
Legendary Reliability Advanced Performance
Honda powered high pressure pumps are specifically designed for applications that require water to be delivered at high pressure over long distances or to elevated locations. Combining the reliability of Honda GX Series engines with efficient high-pressure pump technology, these pumps provide exceptional performance for firefighting, irrigation, wash-down, and water transfer applications.
Built for demanding environments, Honda powered high pressure pumps offer dependable operation, excellent fuel efficiency, and rugged durability. Their ability to generate high discharge pressures makes them an ideal solution wherever strong water delivery is required.
Product Range Overview
Refer to the table below
Single Cylinder Characteristics
- Engine Type Vertical Cylinder, 4-Stroke
- Power 3.6kW - 9.6kW
- Cylinder Single
- Speed 3600rpm
- Cooling Forced Air-Cooling by Flywheel Fan
- Starting System Manual Recoil (Electric Start Optional)
- Fuel Petrol
- Emissions Regulations Non-Regulated Territories
-
Stage 5 compliant certificate available at additional cost
Pump Model
- High Pressure Water Pump Model Engine Model
- HP40-2T GP160
- HP40-2TWB GX390

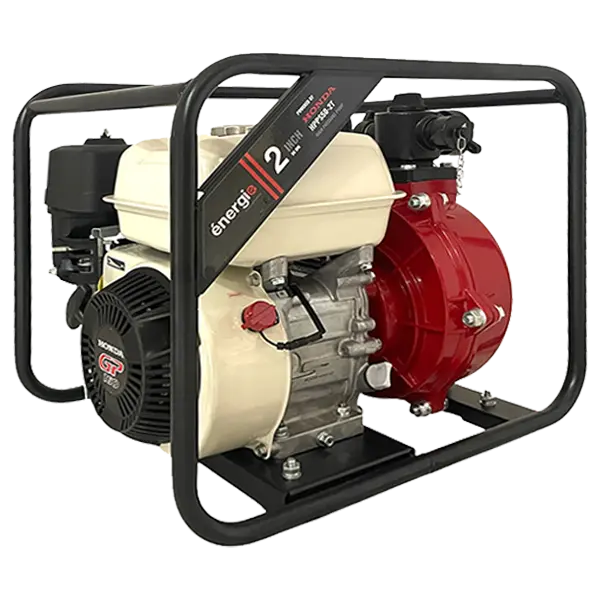

- HP50-2T GP160
- High Pressure Water Pump Model Inlet & Outlet Size
- HP40-2T 1.5" 40mm / 1.5" 40mm
- HP40-2TWB 2" 50mm / 2" 50mm
- HP50-2T 2" 50mm / 2" 50mm
Max Output Rated
-
High Pressure Water Pump Model
Flow L/min ..........kW - HP40-2T 300 ..........3.6
- HP40-2TWB 500 ..........9.6
- HP50-2T 350 ..........3.6
