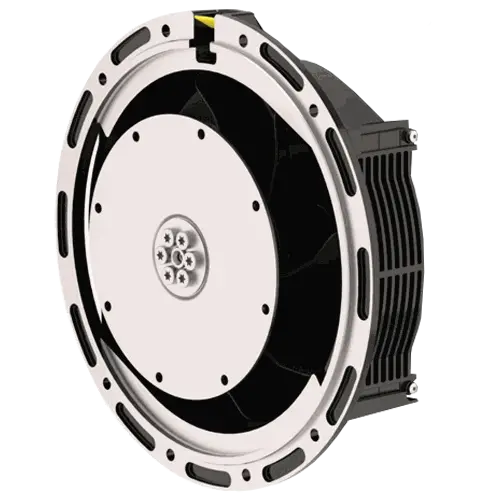

SAE Flange & Disc

The Best of Performance

For all Leroy Somer Spare Parts please contact:


Martin Ward



​RETURN T​​O ALTERNATOR MAIN PAGE

​RETURN T​​O NIDEC POWER HOME PAGE

​RETURN T​​O LEROY SOMER HOME PAGE

​RETURN T​​O VERT ENERGY HOME PAGE

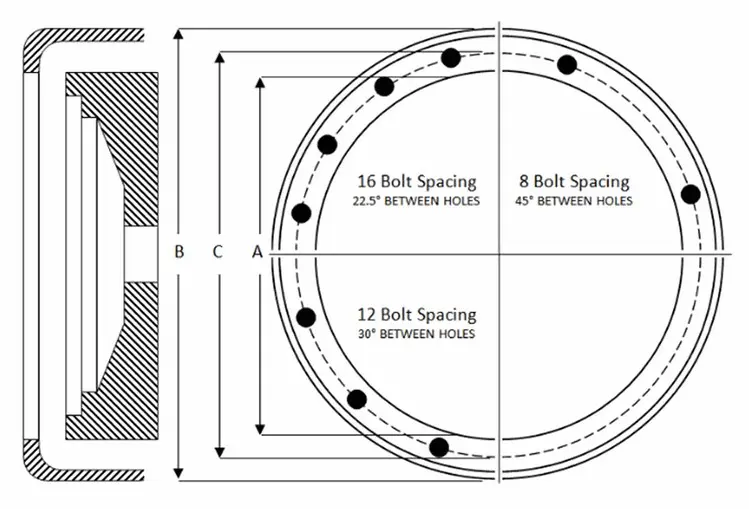

Engine Bell Housing: Flange Sizing and Diagram

Flange Dimensions

Spigot

  • SAE A
  • 00 784.40
  • 0 647.70
  • 1/2 584.20
  • 1 511.17
  • 2 447.67
  • 3 409.57
  • 4 361.95
  • 5 314.32
  • 6 266.70

  •      Unit of Length: mm

OD

  • SAE B
  • 00 882.65
  • 0 711.20
  • 1/2 647.70
  • 1 552.45
  • 2 488.95
  • 3 450.85
  • 4 403.22
  • 5 355.60
  • 6 307.97

  •      Unit of Length: mm

PCD of Holes

  • SAE C
  • 00 850.90
  • 0 679.45
  • 1/2 619.12
  • 1 530.22
  • 2 466.72
  • 3 428.62
  • 4 381.00
  • 5 333.37
  • 6 285.75

  •      Unit of Length: mm

Hole

  • SAE
  • 00 16
  • 0 16
  • 1/2 12
  • 1 12
  • 2 12
  • 3 12
  • 4 12
  • 5 8
  • 6 8

Size

  • SAE
  • 00 1/2 - 13
  • 0 1/2 - 13
  • 1/2 1/2 - 13
  • 1 7/16 - 14
  • 2 3/8 - 16
  • 3 3/8 - 16
  • 4 3/8 - 16
  • 5 3/8 - 16
  • 6 3/8 - 16

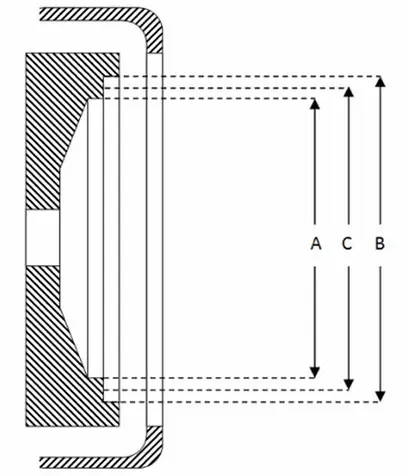

Flywheel Housing: Disc Sizing and Diagram

Disc Dimensions

Spigot

  • SAE A
  • 6 1/2 184.15
  • 7 1/2 206.24
  • 8 225.55
  • 10 276.35
  • 11 1/2 314.45
  • 14 409.44
  • 16 460.24
  • 18 498.34
  • 21 584.20
  • 24 644.65
  • G M71

  • Unit of Length: mm

OD of Disc

  • SAE B
  • 6 1/2 215.90
  • 7 1/2 241.30
  • 8 263.52
  • 10 314.32
  • 11 1/2 352.42
  • 14 466.72
  • 16 517.52
  • 18 571.50
  • 21 673.10
  • 24 733.42
  • G M71 450.85

  •      Unit of Length: mm

PCD of Holes

  • SAE C
  • 6 1/2 200.02
  • 7 1/2 222.25
  • 8 244.47
  • 10 295.27
  • 11 1/2 333.37
  • 14 438.15
  • 16 488.95
  • 18 542.92
  • 21 641.35
  • 24 692.15
  • G M71

  • Unit of Length: mm

Spacing

  • SAE G
  • 6 1/2 30.23
  • 7 1/2 30.23
  • 8 61.98
  • 10 53.84
  • 11 1/2 39.62
  • 14 25.40
  • 16 15.75
  • 18 15.75
  • 21 0
  • 24 0
  • G M71 17.82

  •      Unit of Length: mm

Holes

  • SAE
  • 6 1/2 6
  • 7 1/2 8
  • 8 6
  • 10 8
  • 11 1/2 8
  • 14 8
  • 16 8
  • 18 6
  • 21 12
  • 24 12
  • G M71 4 X 2

  •      Unit of Length: mm

Size

  • SAE A
  • 6 1/2 5/16 - 18
  • 7 1/2 5/16 - 18
  • 8 3/8 - 16
  • 10 3/8 - 16
  • 11 1/2 3/8 - 16
  • 14 1/2 - 13
  • 16 1/2 - 13
  • 18 5/8 - 11
  • 21 5/8 - 11
  • 24 3/4 - 10
  • G M71

  • Unit of Length: mm

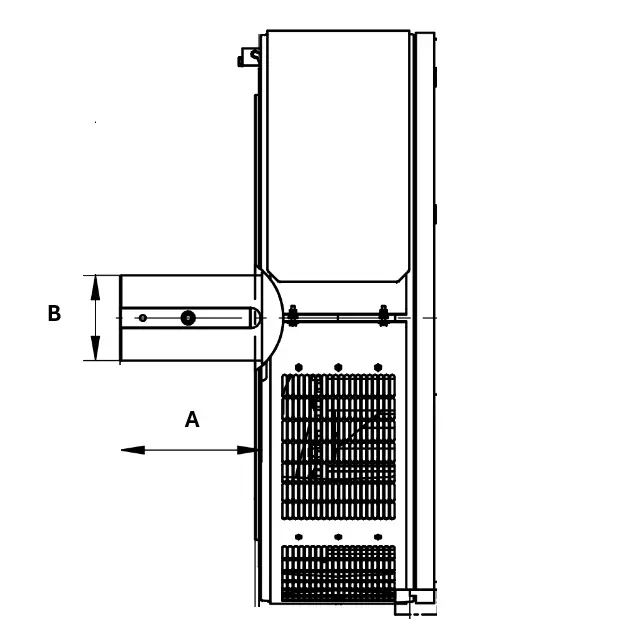

Double Bearing Shaft Dimensions

Shaft Dimensions

Shaft Length

  • Model A
  • LSAP 40 80
  • LSAP 42.3 82
  • LSAP 44.3 105
  • LSAP 46.3 105
  • LSAP 47.3 130
  • LSA 49.3 165
  • LSA 50.2 210
  • LSA 52.3 250
  • LSA 53.2 230
  • LSA 54.2 230

  •      Unit of Length: mm

Shaft Dia (Excl Key)

  • Model B
  • LSAP 40 42
  • LSAP 42.3 48
  • LSAP 44.3 65
  • LSAP 46.3 75
  • LSAP 47.3 85
  • LSA 49.3 100
  • LSA 50.2 120
  • LSA 52.3 150
  • LSA 53.2 150
  • LSA 54.2 150

  •      Unit of Length: mm

Shaft Thread

  • Model C
  • LSAP 40 M6
  • LSAP 42.3 M6
  • LSAP 44.3 M20
  • LSAP 46.3 M20
  • LSAP 47.3 M20
  • LSA 49.3 M24
  • LSA 50.2 M24
  • LSA 52.3 M30
  • LSA 53.2 M30
  • LSA 54.2 M30

Key Width

  • Model D
  • LSAP 40 12
  • LSAP 42.3 14
  • LSAP 44.3 18
  • LSAP 46.3 20
  • LSAP 47.3 22
  • LSA 49.3 28
  • LSA 50.2 32
  • LSA 52.3 36
  • LSA 53.2 36
  • LSA 54.2 36

  •      Unit of Length: mm

Key Height / Depth

  • Model E
  • LSAP 40 8
  • LSAP 42.3 8
  • LSAP 44.3 11
  • LSAP 46.3 12
  • LSAP 47.3 14
  • LSA 49.3 16
  • LSA 50.2 18
  • LSA 52.3 20
  • LSA 53.2 20
  • LSA 54.2 20

  •      Unit of Length: mm

Overall Height Shaft

  • Model F
  • LSAP 40 45
  • LSAP 42.3 51.5
  • LSAP 44.3 69
  • LSAP 46.3 79.5
  • LSAP 47.3 90
  • LSA 49.3 106
  • LSA 50.2 109
  • LSA 52.3 158
  • LSA 53.2 158
  • LSA 54.2 158

  •      Unit of Length: mm
