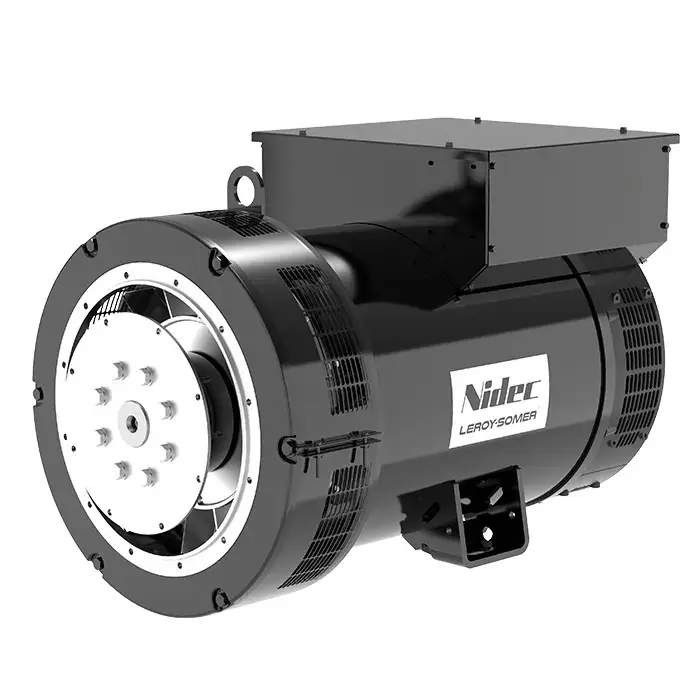

TAL46 Alternators
The Best of Performance
The Nidec Leroy-Somer range of TAL46 alternators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the TAL46 strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, Leroy Somer will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 230 -365 kVA
- Voltage 400V
- Poles 4 Pole
- Speed 1500 rpm
- Max Efficiency 95.8%
- Standard AVR R150
- Excitation Brushless with AVR
- Winding Protection Tropicalised
- Paint RAL9005 Matt Black
Key Features
- Insulation Class Class H
- Temperature Rise Class H
- Number of Leads 12
- Protection IP23
- Altitude <1000 masl
- Overspeed 2250 rpm
- Excitation System Shunt / Arep+
- Sustained Short Circuit Protection (With D350 AVR) Optional
- Short-circuit Current 300% for 10s
Optional Equipment
- Dedicated Voltages Spot Wound
- Spacer Heater High Humidity
- Winding Protection Harsh Environments
- Stator Temp Detector PT100
- Bearing Temp Detector PTC
- Air Inlet Filters Derate by 5%
- Customised Paint RAL Colors
- Digital AVR's D350
-
Custom Cable Glands
Product Range
Overview
Prime Rated kVA & kW
- Model kVA \ kW
- TAL 46C 230 \ 184
- TAL 46D 250 \ 200
- TAL 46E 275 \ 220
- TAL 46F 300 \ 240
- TAL 46G 325 \ 260
- TAL 46H 365 \ 292
-
Values are at 1500rpm 50hz 400v, 1000masl 0.8pF Class H/H
Experience this range of alternators
Mounting Configurations ( Standard )
SAE 2 - 11.5
SAE 1 - 14
DOWNLOAD:
Options
Drawing-CAD TAL 46D SAE 2-11.5 - 250kVA
Drawing-PDF TAL 46D SAE 2-11.5 - 250kVA
Drawing-CAD TAL 46D SAE 1-14 - 250kVA
Drawing-PDF TAL 46D SAE 1-14 - 250kVA
Drawing-CAD TAL 46F SAE 2-11.5 - 300kVA
Drawing-PDF TAL 46F SAE 2-11.5 - 300kVA
Drawing-CAD TAL 46F SAE 1-14 - 300kVA
Drawing-PDF TAL 46F SAE 1-14 - 300kVA
Drawing-CAD TAL 46H SAE 2-11.5 - 350kVA
Drawing-PDF TAL 46H SAE 2-11.5 - 350kVA
