Electric Power Generation: NSM
Pure Energy Solutions for Sub-Saharan Africa

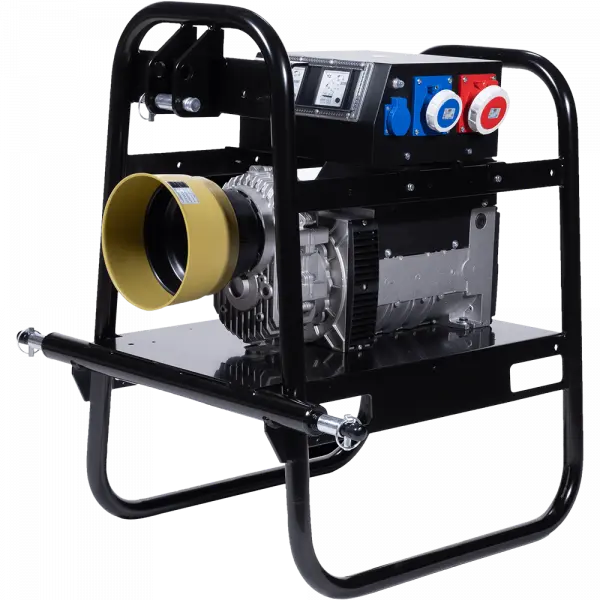

PTO Generator Tractorwatt
The Best of Performance
The NSM range of PTO Generators have been designed to offer you the best in power generation performance. With its meticulous design and optimized architecture, the PTO Generators strikes the perfect balance between compactness, reliability, performance and longevity.
Whatever your application, NSM will meet your needs and will adapt to all situations.
Product Range Overview
Refer to the table below
Characteristics
- Power 10 -72.5 kVA
- Voltage 220V or 400V
- Poles 2 Pole or 4 Pole
- Speed 3000 rpm or 1500rpm
- Max Efficiency 88%
- Winding Protection Tropicalised
Key Features
- Insulation Class Class H
- Temperature Rise Class H
- Protection IP23 (Alternator)
- Protection IP54 (Panel)
- Altitude <1000 masl
- Short-circuit Current 300% for 10s
Optional Equipment
-
Electrical Panel
-
Battery Charger
Product Range
Overview
Prime Rated kVA
- Three Phase with Compound 2 Pole Model kVA.....Regulation........V
- ZW100 LB 10.0.........AVR.........400v
- ZW112 SA 12.0.........AVR.........400v
- ZW112 SB 13.5.........AVR.........400v
- ZW112 SC 16.0.........AVR.........400v
- ZW112 MA 20.0.........AVR.........400v
- ZW112 MC 25.0.........AVR.........400v
-
- Three Phase with AVR-D 2 Pole Model kVA.....Regulation........V
- ZRW100 LB 10.0.........AVR.........400v
- ZRW112 SB 13.0.........AVR.........400v
- ZRW112 SC 15.0.........AVR.........400v
- ZRW112 MA 20.0.........AVR.........400v
- ZRW112 MC 22.0.........AVR.........400v
-
- Three Phase with AVR-D 4 Pole Model ZRW Range kVA.....Regulation........V
- ZRW132 XSB 10.0.........AVR.........400v
- ZRW132 SB 15.0.........AVR.........400v
- ZRW132 MA 20.0.........AVR.........400v
- ZRW132 LA 27.0.........AVR.........400v
- ZRW180 SD 30.0.........AVR.........400v
-
- Three Phase with AVR-D 4 Pole Model ZBW Range kVA.....Regulation........V
- ZBW132 XSB 10.0.........AVR.........400v
- ZBW132 SB 16.0.........AVR.........400v
- ZBW132 MA 20.0.........AVR.........400v
- ZBW132 LA 25.0.........AVR.........400v
- ZBW180 SC 30.0.........AVR.........400v
- ZBW180 MB 40.0.........AVR.........400v
- ZBW180 LA 50.0.........AVR.........400v
- ZBW180 LC 60.0.........AVR.........400v
- ZBW180 XA 72.5.........AVR.........400v
-
Values are at 1500rpm and 3000rpm 50hz 400v, 1000masl 0.8pF Class H/H
DOWNLOAD:
Three Phase with Compound 2 Pole Model
Technical Data Sheet-ZW100 LB 10.0kVA-AVR 400V
Technical Data Sheet-ZW112 SA 12.0kVA-AVR 400V
Technical Data Sheet-ZW112 SB 13.5kVA-AVR 400V
Technical Data Sheet-ZW112 SC 16.0kVA-AVR 400V
Technical Data Sheet-ZW112 MA 20.0kVA-AVR 400V
Technical Data Sheet-ZW112 MC 25.0kVA-AVR 400V
Three Phase with AVR-D 2 Pole Model
Technical Data Sheet-ZRW100 LB 10.0kVA-AVR 400V
Technical Data Sheet-ZRW112 SB 13.0kVA-AVR 400V
Technical Data Sheet-ZRW112 SC 15.0kVA-AVR 400V
Technical Data Sheet-ZRW112 MA 20.0kVA-AVR 400V
Technical Data Sheet-ZRW112 MC 22.0kVA-AVR 400V
Three Phase with AVR-D 4 Pole Model ZRW Range
Technical Data Sheet-ZRW132 XSB 10.0kVA-AVR 400V
Technical Data Sheet-ZRW132 SB 15.0kVA-AVR 400V
Technical Data Sheet-ZRW132 MA 20.0kVA-AVR 400V
Technical Data Sheet-ZRW132 LA 27.0kVA-AVR 400V
Technical Data Sheet-ZRW180 SD 30.0kVA-AVR 400V
Three Phase with AVR-D 4 Pole Model ZBW Range
Technical Data Sheet-ZBW132 XSB 10.0kVA-AVR 400V
Technical Data Sheet-ZBW132 SB 16.0kVA-AVR 400V
Technical Data Sheet-ZBW132 MA 20.0kVA-AVR 400V
Technical Data Sheet-ZBW132 LA 25.0kVA-AVR 400V
Technical Data Sheet-ZBW180 SC 30.0kVA-AVR 400V
Technical Data Sheet-ZBW180 MB 40.0kVA-AVR 400V
Technical Data Sheet-ZBW180 LA 50.0kVA-AVR 400V
We offer a 30-day return policy for all products. Items must be in their original condition, unused, and include the receipt or proof of purchase. Refunds are processed within 5-7 business days of receiving the returned item.
We offer a 30-day return policy for all products. Items must be in their original condition, unused, and include the receipt or proof of purchase. Refunds are processed within 5-7 business days of receiving the returned item.
Three Phase with Compound 2 Pole Model
Installation and Maintenance Manual-ZW100 LB 10.0kVA-AVR 400V
Installation and Maintenance Manual-ZW112 SA 12.0kVA-AVR 400V
Installation and Maintenance Manual-ZW112 SB 13.5kVA-AVR 400V
Installation and Maintenance Manual-ZW112 SC 16.0kVA-AVR 400V
Installation and Maintenance Manual-ZW112 MA 20.0kVA-AVR 400V
Installation and Maintenance Manual-ZW112 MC 25.0kVA-AVR 400V
Three Phase with AVR-D 2 Pole Model
Installation and Maintenance Manual-ZRW100 LB 10.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW112 SB 13.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW112 SC 15.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW112 MA 20.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW112 MC 22.0kVA-AVR 400V
Three Phase with AVR-D 4 Pole Model ZRW Range
Installation and Maintenance Manual-ZRW132 XSB 10.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW132 SB 15.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW132 MA 20.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW132 LA 27.0kVA-AVR 400V
Installation and Maintenance Manual-ZRW180 SD 30.0kVA-AVR 400V
Three Phase with AVR-D 4 Pole Model ZBW Range
Installation and Maintenance Manual-ZBW132 XSB 10.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW132 SB 16.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW132 MA 20.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW132 LA 25.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW180 SC 30.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW180 MB 40.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW180 LA 50.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW180 LC 60.0kVA-AVR 400V
Installation and Maintenance Manual-ZBW180 XA 72.5kVA-AVR 400V
